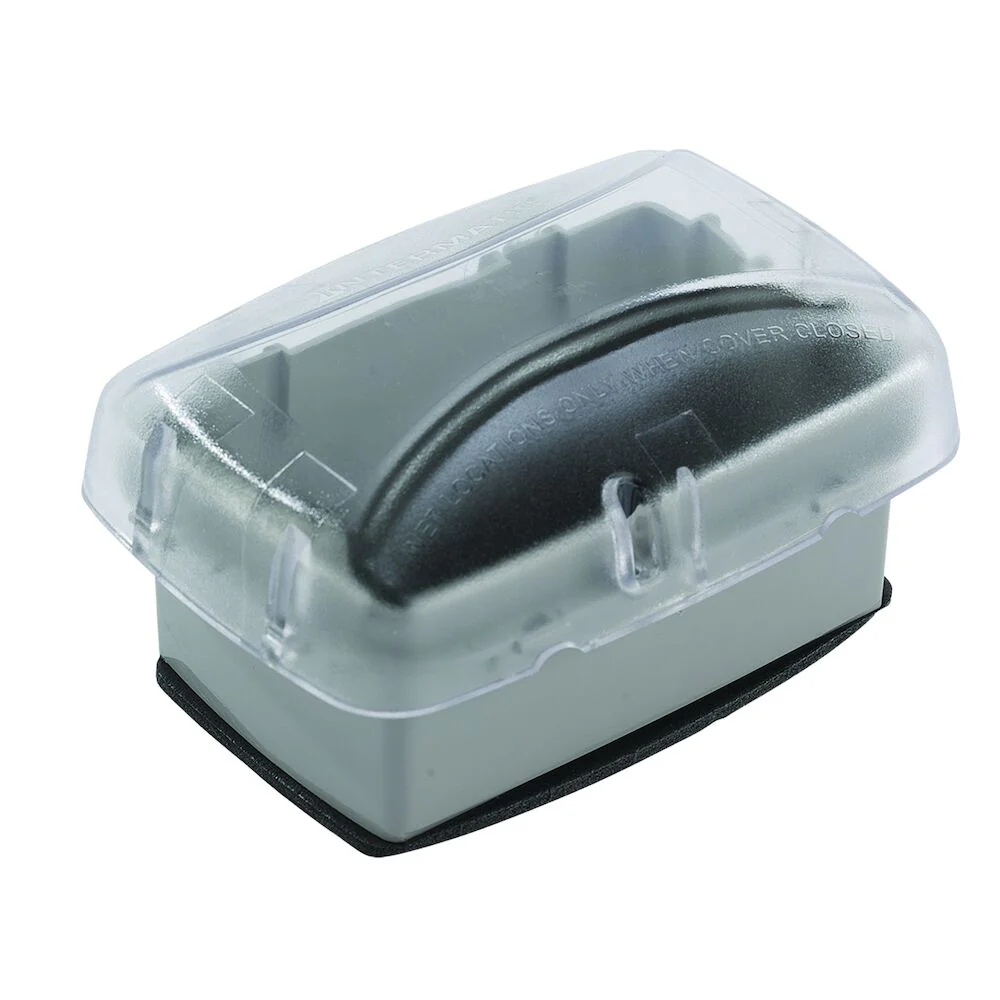

Intermatic Clear Vertical/Horizontal Plastic In-Use Weatherproof Cover, Single Gang 2.75" Deep, Model WP3100C

Description

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features

• Complies with 2020 NEC Article 314.15 for damp and wet locations
• UL Certified for Type 3R outdoor enclosures
• Meets requirements for cold impact testing: -60° F (-51° C)
• Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
• 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
• Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1⁄8" (3 mm) dia shank
• Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
• Max cord size: (2) #14 AWG or (1) #12 AWG
• Mounts vertically or horizontally
• Warranty: 1-year limited

Technical Information

Number of Included: Inserts 3
Insert Types Included: WP17
Hinge Direction: Vertical/Horizontal
Is Extra-Duty Rated: No
Product Dimensions (H x W x D) in: 5 3/4 x 4 x 2 3/4 in
Accepted Cord Size: Max 2x14 AWG; 1x12 AWG
Box Type: Single
Color: Clear
Weatherproof Cover Material: UV Stabilized Plastic
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited

Document

Brochure

Technical Sheet

Instruction
