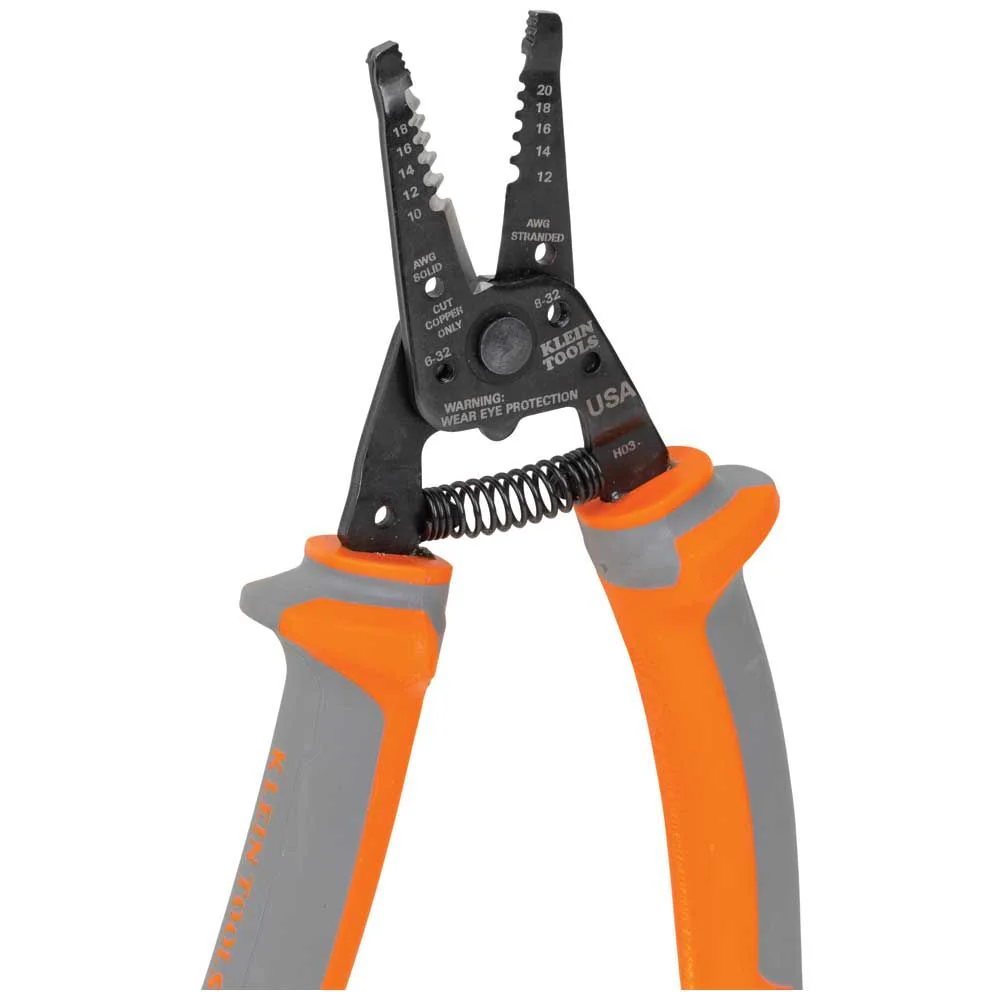

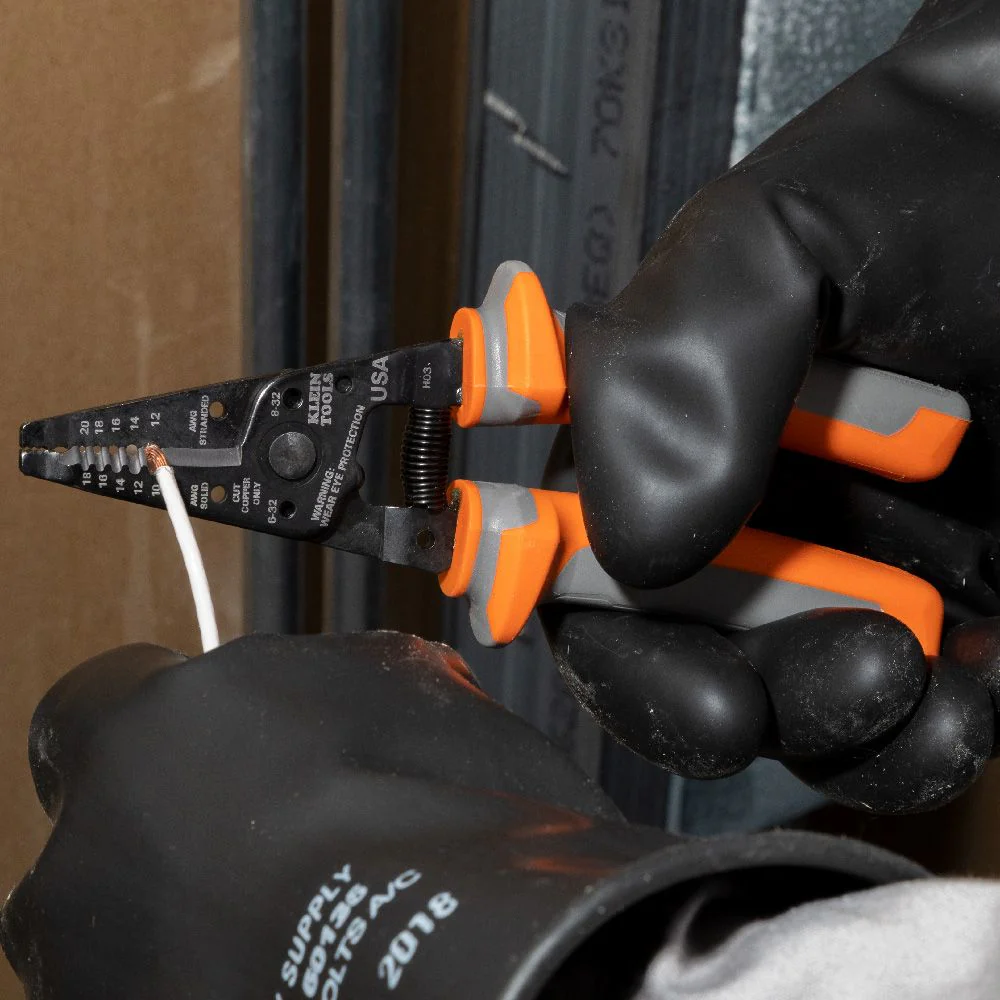

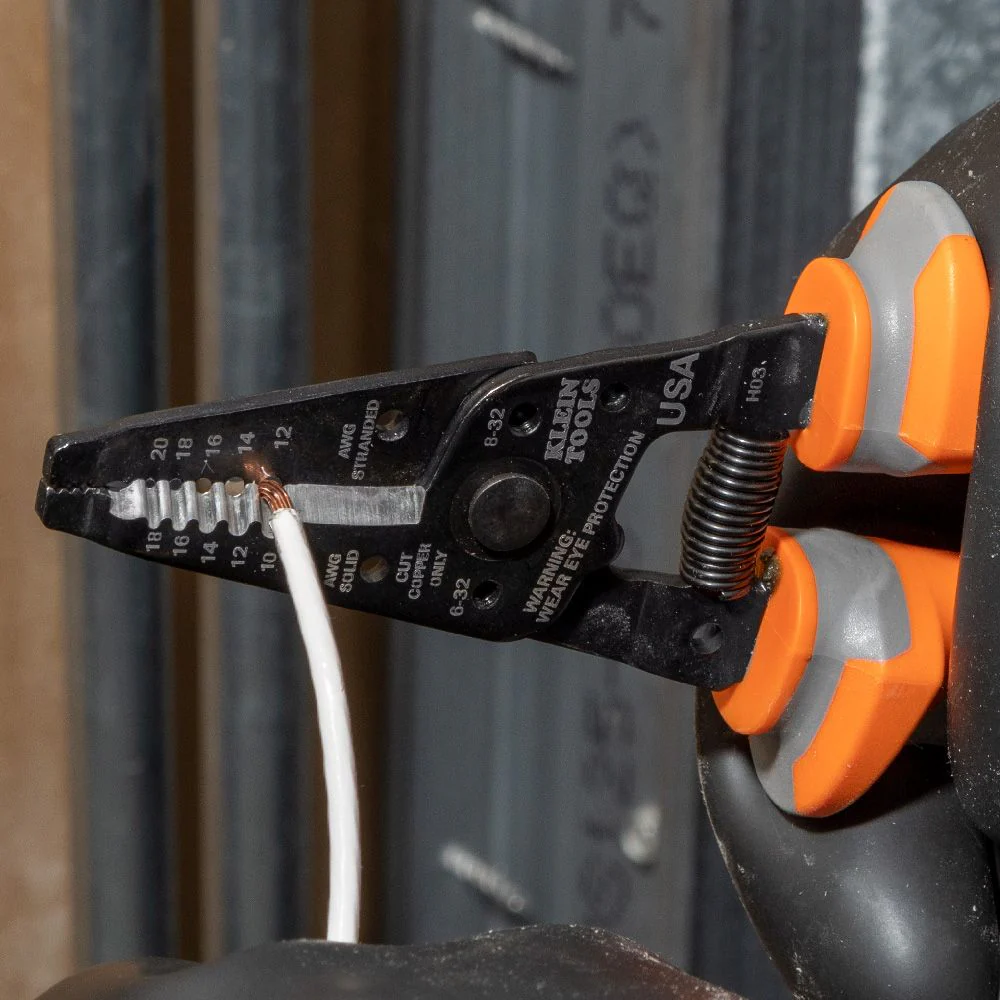

Klein Tools Insulated Klein-Kurve Wire Stripper and Cutter, Model 11055RINS*

Description

Guard against electric shock when working on live wires with the Klein Tools Insulated Wire Stripper/Cutter. The thick multi-layer grips protect up to 1000V. Made in the USA, this tool cuts, strips and loops solid and stranded AWG wire as well as shears 6-32 and 8-32 screws. This professional grade tool with 1000V rated protection allows you to get the job done safely.

Features

• Insulated Wire Stripper/Cutter is individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools
• Thick multi-layer grip design provides protection against electric shock
• Cuts, strips, and loops both 10-18 solid and 12-20 stranded AWG wire
• Cleanly shears 6-32 and 8-32 screws
• Made in the USA
• Shear-type cutting blades for clean cuts
• Spring-loaded action for self-opening
• DO NOT use to cut steel wire

Technical Information

Type: Insulated
Application: Wire Stripping and Cutting
Special Features: 1000V Rated
Material: Hardened Steel
Insulated: Yes
Strips and Cuts: 10-18 AWG Solid, 12-20 AWG Stranded
Screw Shearing: Yes; 6-32, 8-32
Wire Gauge: 10-18 AWG Solid; 12-20 AWG Stranded
Jaw Capacity: 0.75'' (1.9 cm)
Jaw Size: 0.25'' (0.6 cm)
Hold-Open Spring: Yes
Standard: IEC 60900 and ASTM F1505
Overall Length: 7.7'' (19.5 cm)
Overall Height: 1.2'' (3.1 cm)
Overall Width: 4.75'' (12.1 cm)
Handle Color: Gray/Orange
Handle Finish: Insulated
Handle Material: Multi-Layer Insulation
Weight: 7.7 oz (218 g)
UPC: 092644740695
