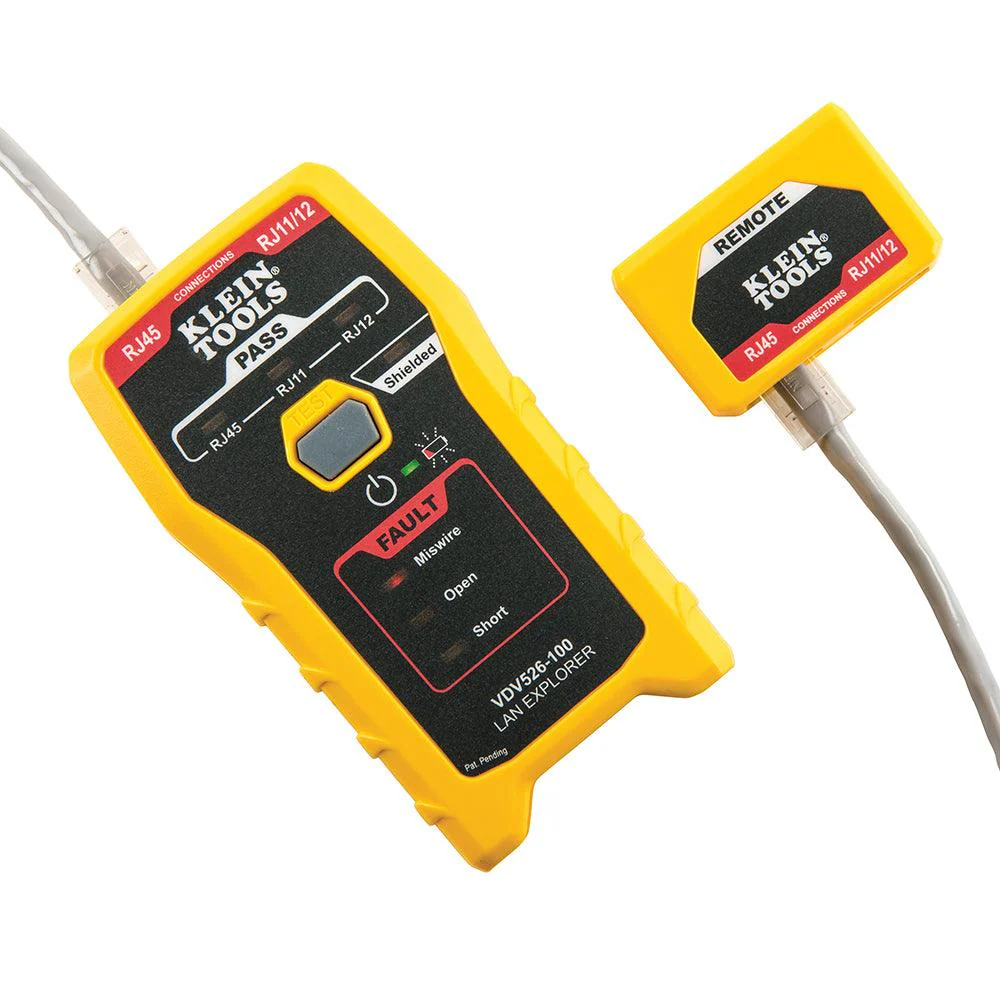

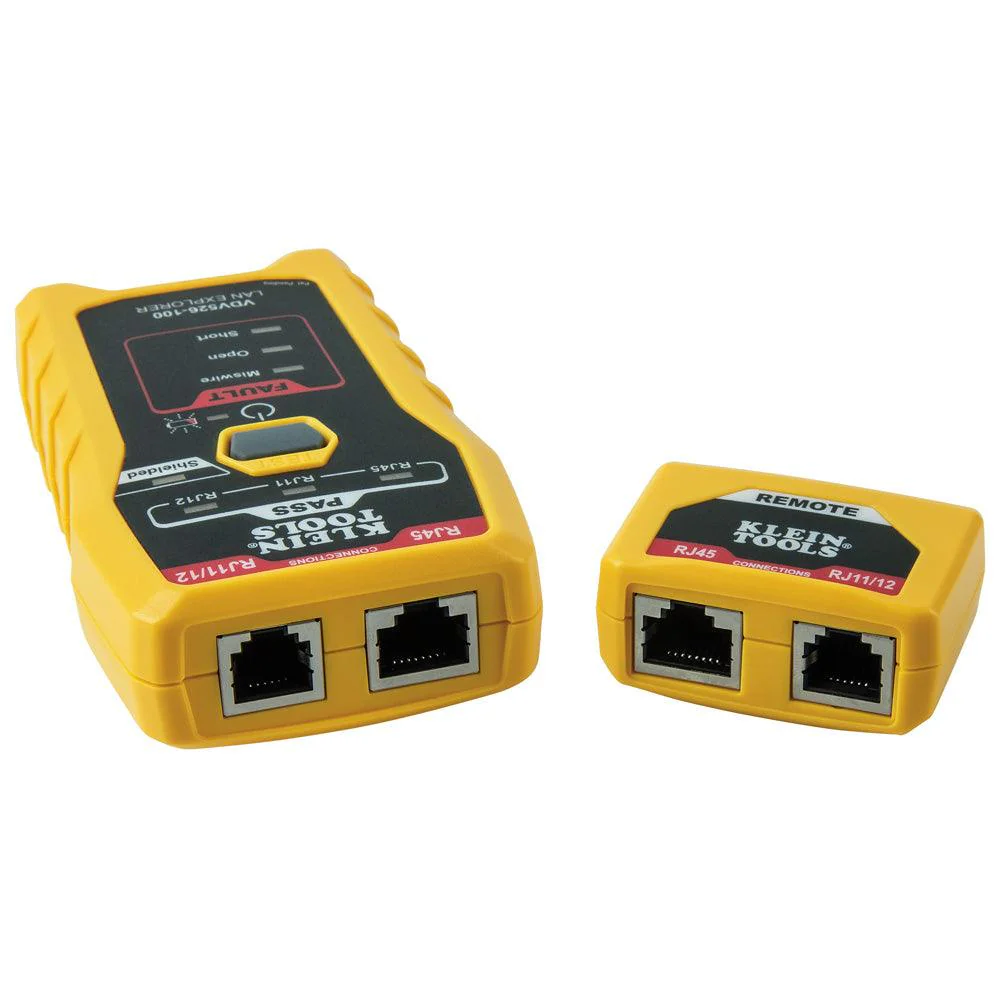

Klein Tools LAN Explorer Data Cable Tester with Remote, Model VDV526-100

Description

Single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables, Tests CAT3, CAT5e and CAT6/6A cables. This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).

Benefits

• Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
• Tests CAT3, CAT5e and CAT6/6A cables
• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
• Test remote stores securely in tester body
• Compact tester easily fits in your pocket
• Auto Power-off feature to conserve battery life (9V included)
• Low battery indicator

Technical Information

Type: Twisted Pair, DATA, Voice, LAN
Application: Cable Testing
Special Features: LED response
Cable Type: CAT3, CAT5e, CAT6/6A
Overall Length: 5'' (12.7 cm)
Overall Height: 1.25'' (3.2 cm)
Overall Width: 2.5'' (6.4 cm)
Material: Plastic and Stamped Metal
Test-n-Map ID Remotes: 1
Batteries: 1 x 9V
Battery Life: Active: 80 Hours, Standby: 3.5 years
Drop Protection: 2' (0.6 m)
Supported Remotes: VDV999150
Connection & Adapter Types: RJ11, RJ12, and RJ45
Display: LED
Multiple Style Tone Generator: No
Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, and Shield
Test & Measure Types: Voice, Data, RJ45, RJ11
Included: Tester, Remote, 9V Battery
Weight: 4.0 oz. (116 g)
