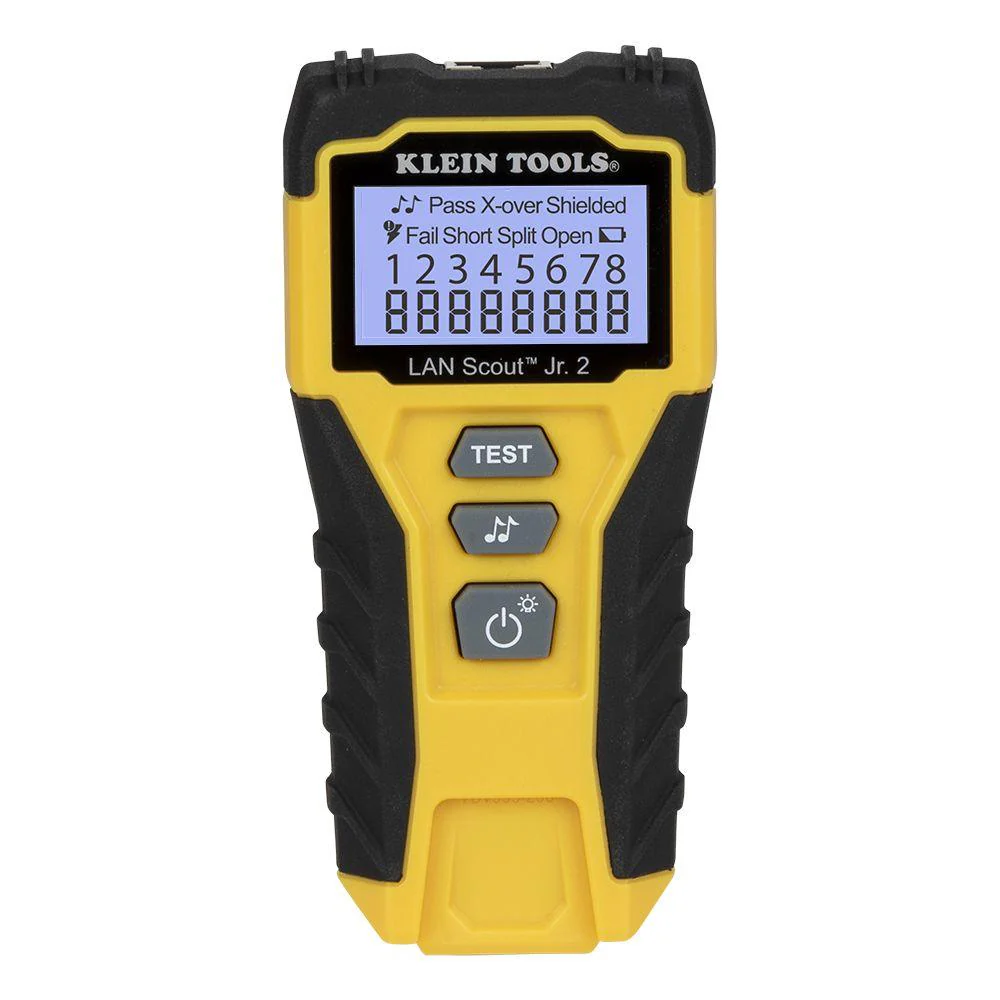

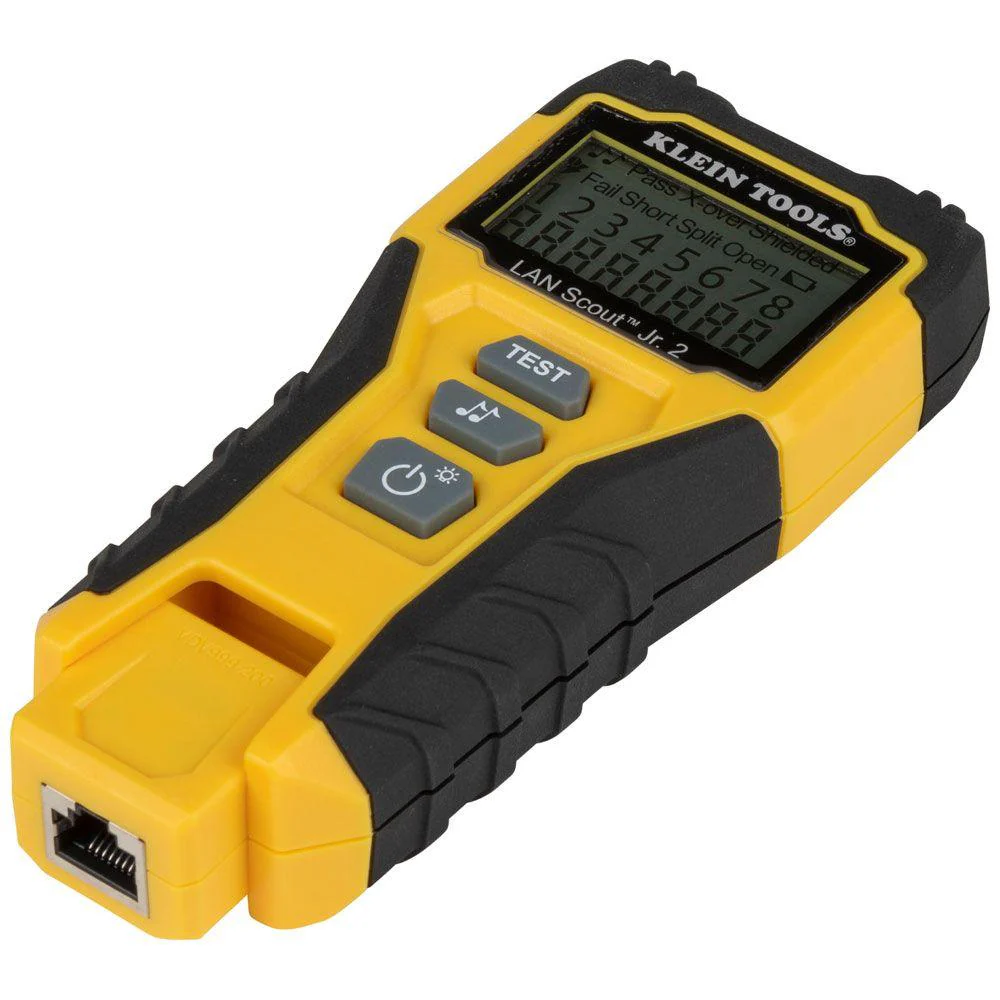

Klein Tools LAN Scout™ Jr. 2 Cable Tester, Model VDV526-200

Description

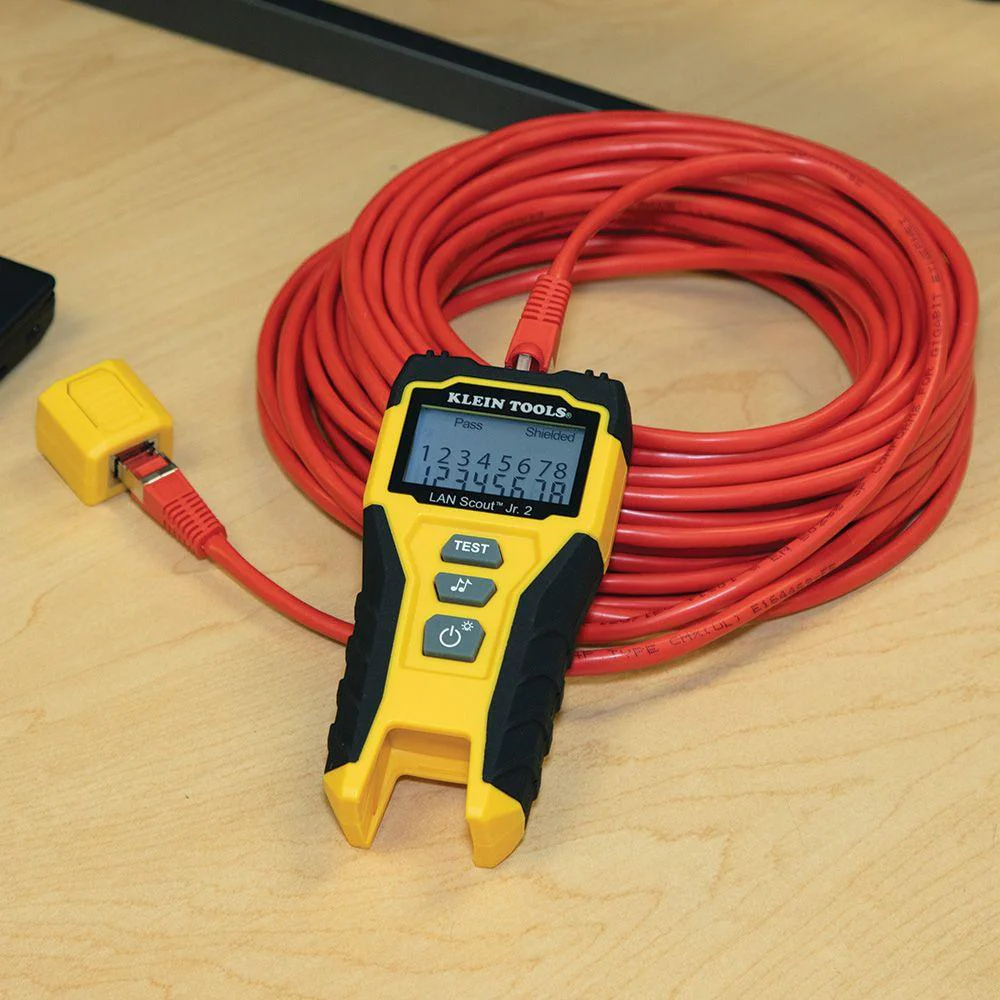

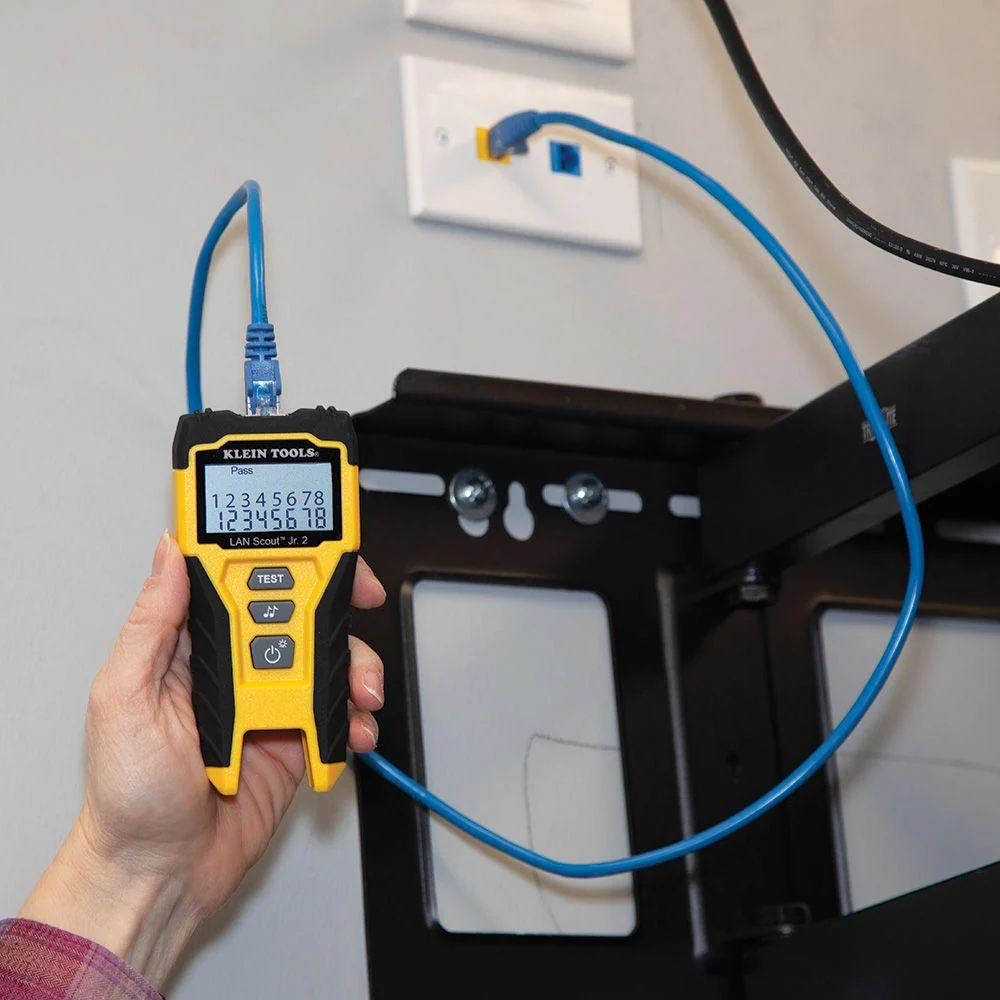

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.

Features

• Cable tester for data (RJ45) terminated cables and patch cords

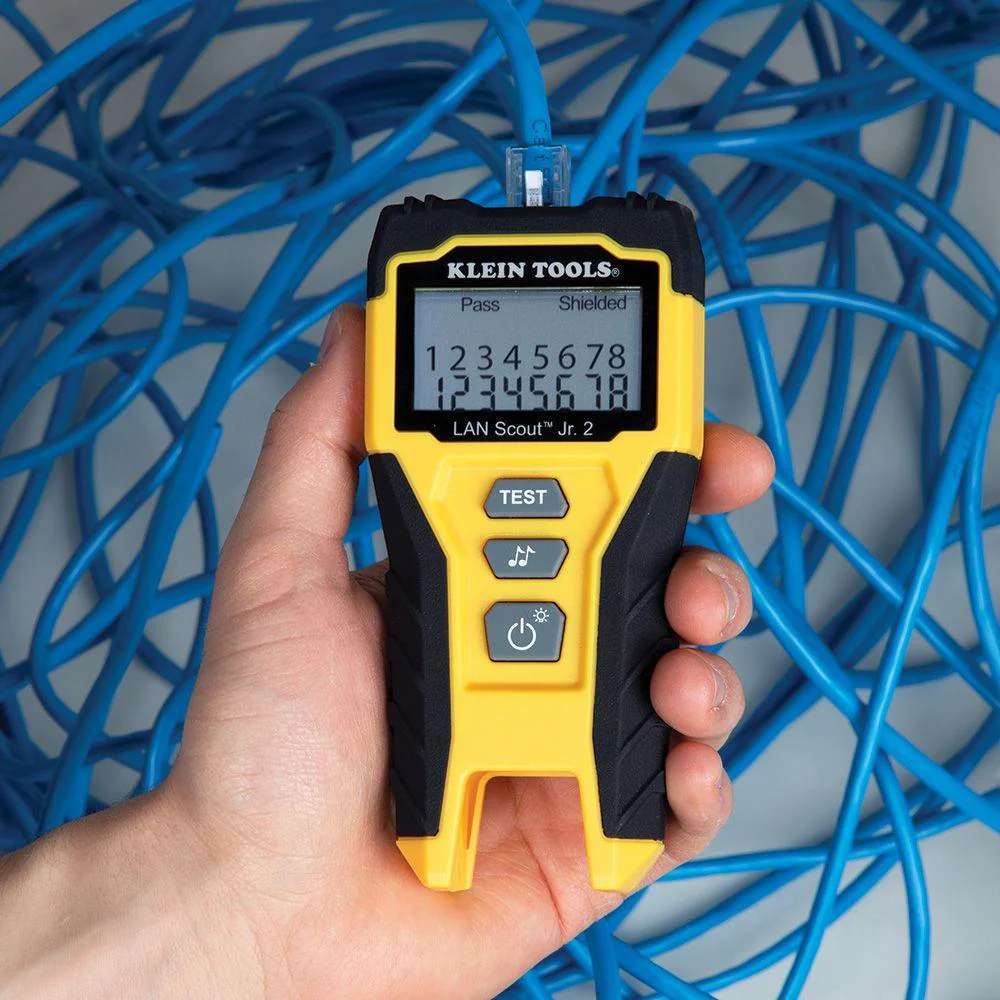

• Large backlit LCD for low lit areas displays pin to pin wiremap results
• Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Tone on single wire, wire pair or all 8 conductor wires
• Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
• Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
• Soft, slip-resistant, rugged overmold for easy gripping and durability
• Replaceable 2 x AAA batteries (included)
• Replaceable self-storing remote (included)
• Replacement remote available; sold separately (Cat. No. VDV999-200)

Technical information

Type: DATA, Voice, LAN
Application: Cable Testing
Special Features: Backlit LCD
Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
Overall Length: 5'' (13 cm)
Overall Height: 1'' (2.5 cm)
Overall Width: 2.5'' (6.4 cm)
Material: Plastic and Stamped Metal
Test-n-Map ID Remotes: 1
Location ID: No
Batteries: 2 × AAA Alkaline
Battery Life: Active: 80 Hours; Standby: 3 Years
Drop Protection: 2' (0.6 m)
Supported Remotes: (1) Self-Storing
Connection & Adapter Types: RJ45
Display: LCD
Multiple Style Tone Generator: Yes
Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
Test & Measure Types: Data, RJ45
Included: Tester, Remote, 2 × AAA Alkaline Batteries
Weight: 4.3 oz (122 g)
