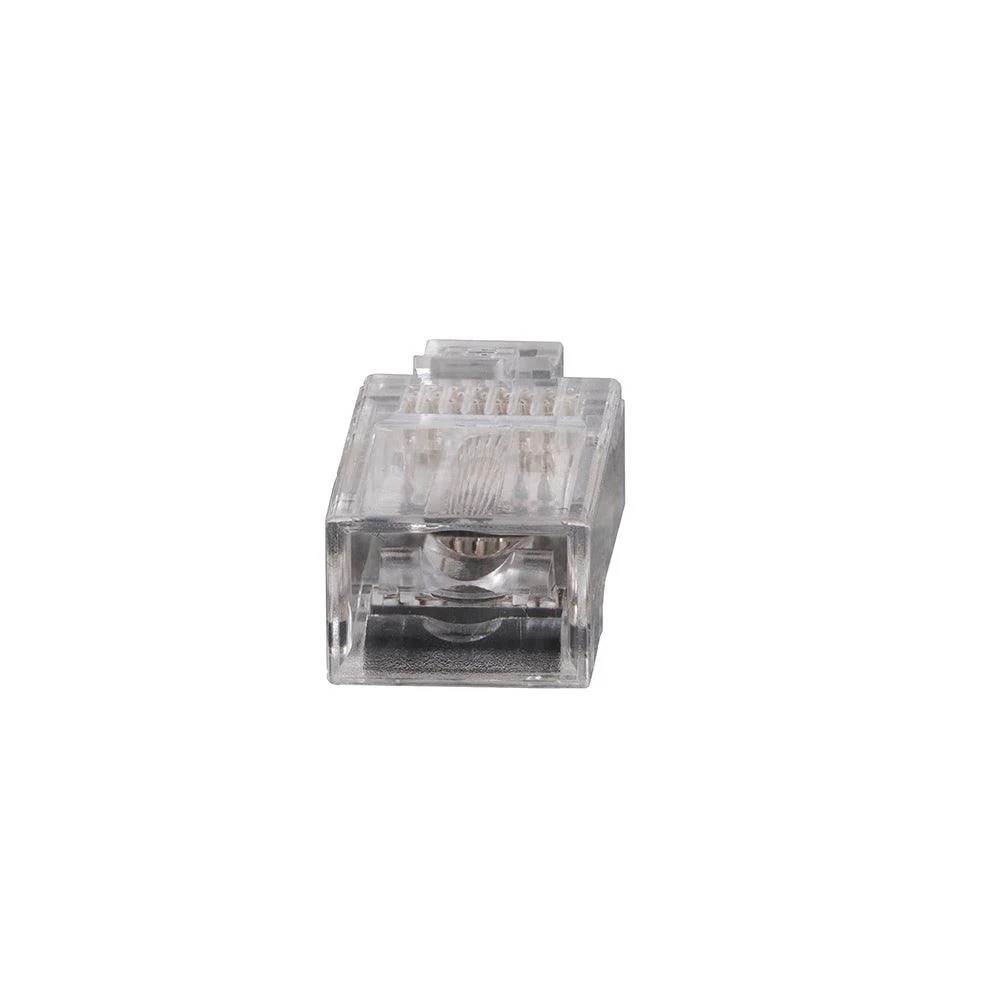

Klein Tools Pass-Thru Modular Data Plugs, RJ45-CAT5e, 200-Pack, Model VDV826-762*

Description

Exclusive Klein-designed Pass-Thru™ CAT5e modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials.

Features

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50µ inch gold plating on all contact surfaces
• Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant

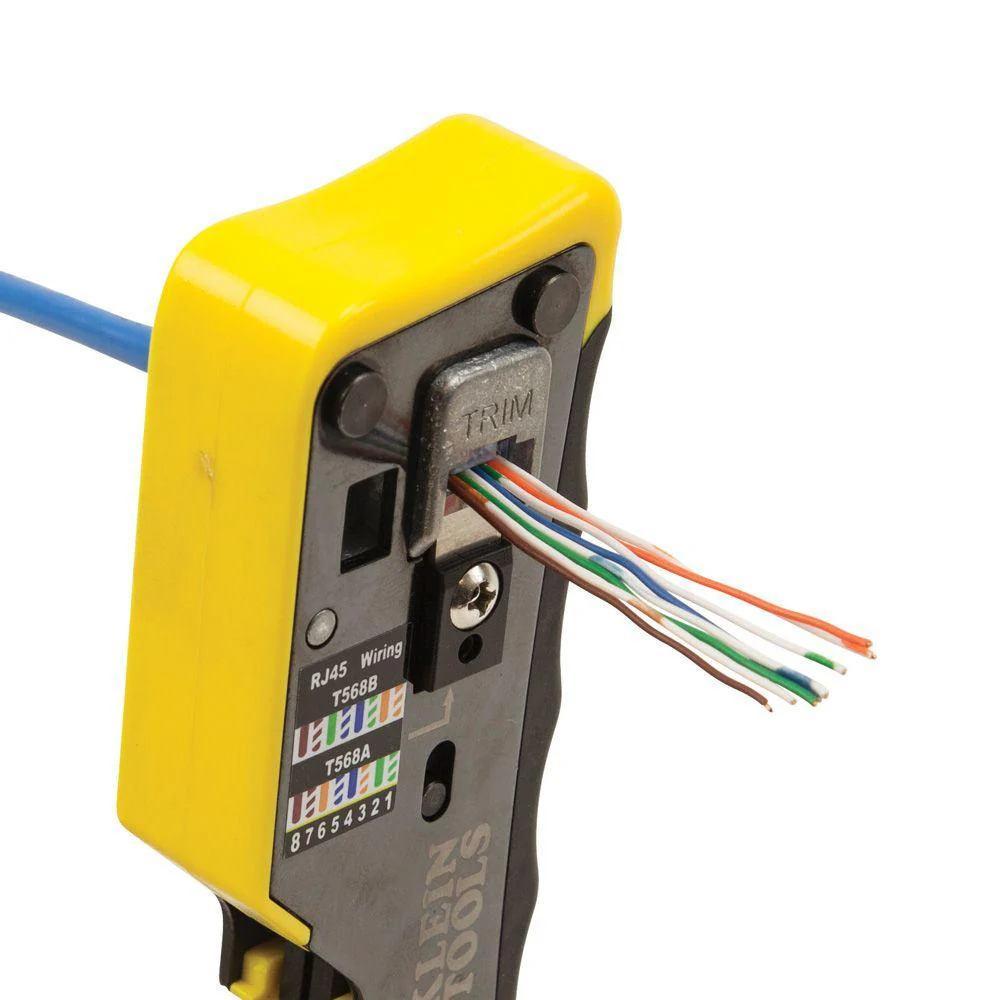

• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• 200-Pack
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)

Technical Information

Type: Modular
Application: Voice and Data
Special Features: Pass-Thru Technology
Overall Length: 0.875'' (2.2 cm)
Overall Height: 0.453'' (1.2 cm)
Overall Width: 0.094'' (0.2 cm)
Material: PVC Plastic; Gold Plated Contacts
Connector Type: RJ45
Cable Type: CAT5e
Position & Contacts: 8P 8C
Connector Color: Clear
Solid Conductor Wire: Yes
Stranded Conductor Wire: Yes
Package Quantity: 200
