Klein Tools Premium Electrical Test Kit, Model 69355

Description

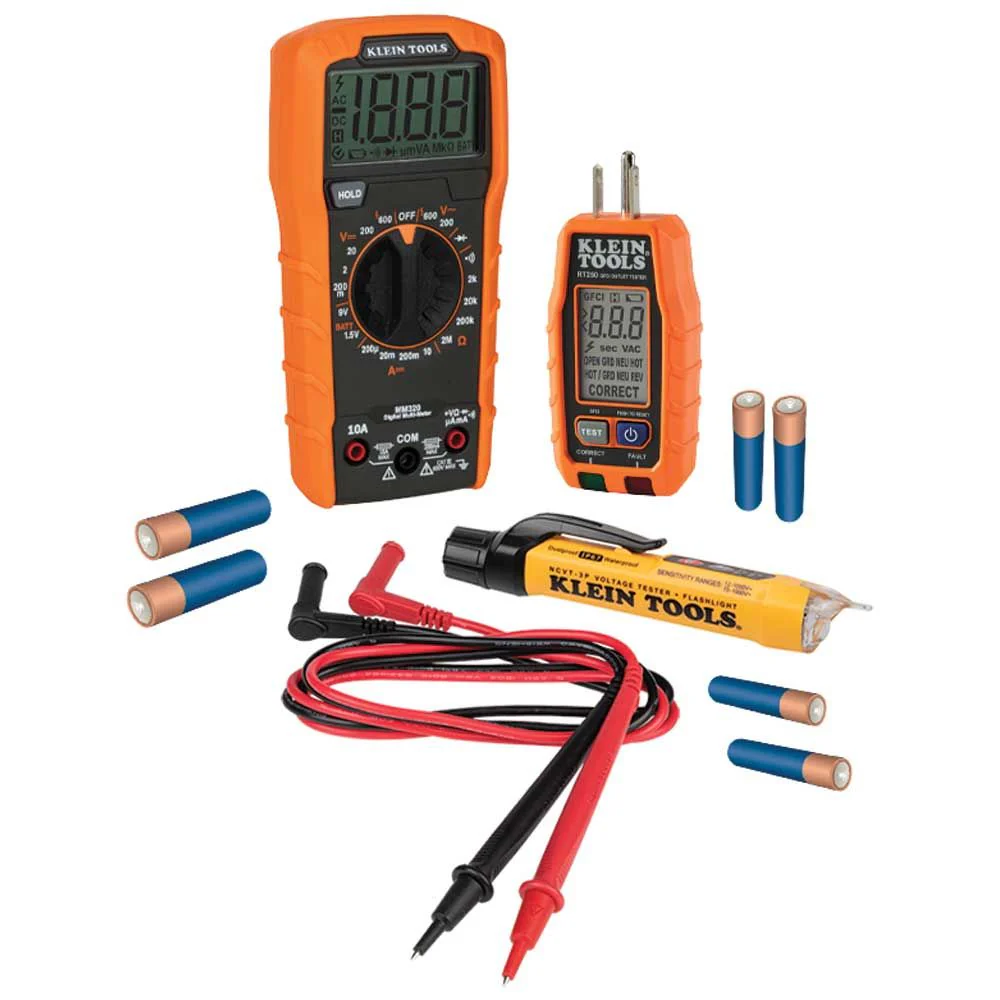

Klein Tools Premium Electrical Test Kit includes a Manual-Ranging Digital Multimeter (Cat. No. MM320) with right-angle test leads, Dual Range Non-Contact Voltage Tester with Flashlight, 12 to1000 VAC (Cat. No. NCVT3P), and a GFCI Receptacle Tester with LCD (Cat. No. RT250). This convenient kit features products for a variety of applications with safety and reliability in mind. Comes with all required batteries.

Features

• Electrical Kit with Premium Testers solve various electrical applications; Manual-Ranging Digital Multimeter, Dual Range Non-Contact Voltage Tester with Flashlight, and GFCI Receptacle Tester with LCD

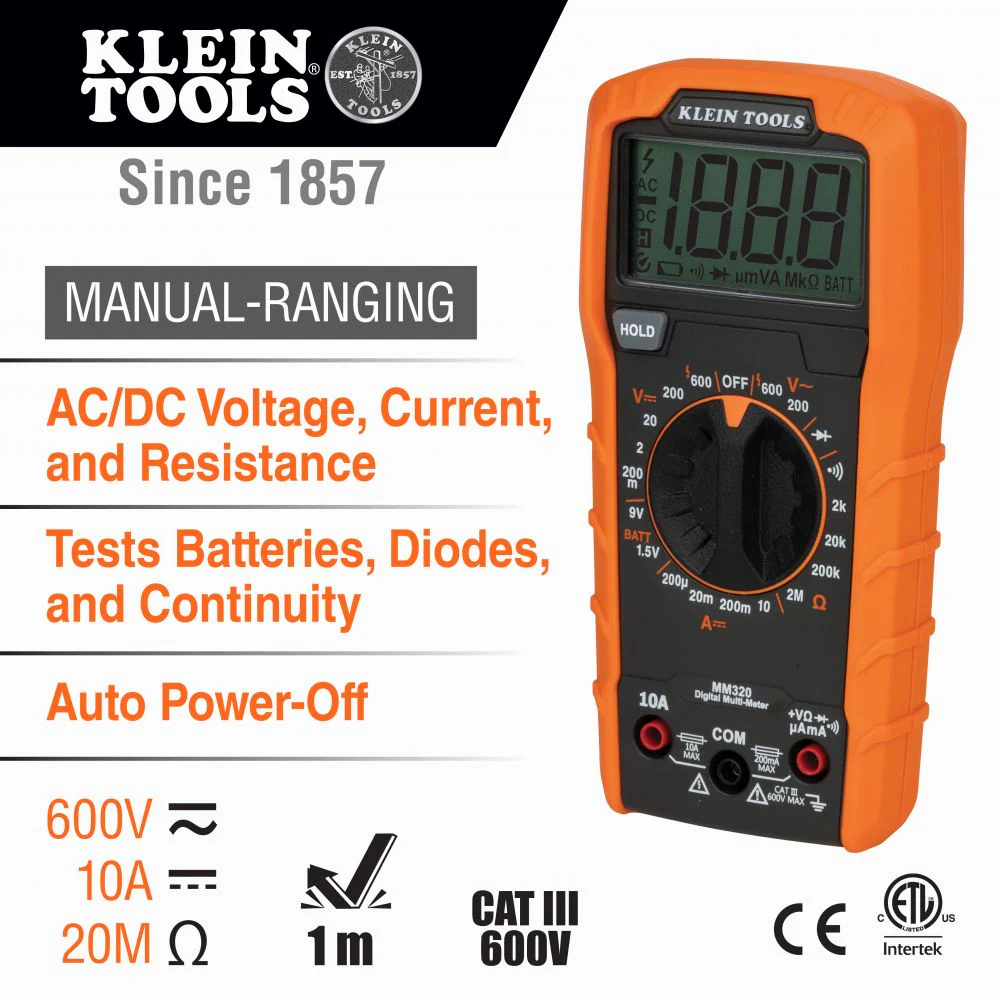

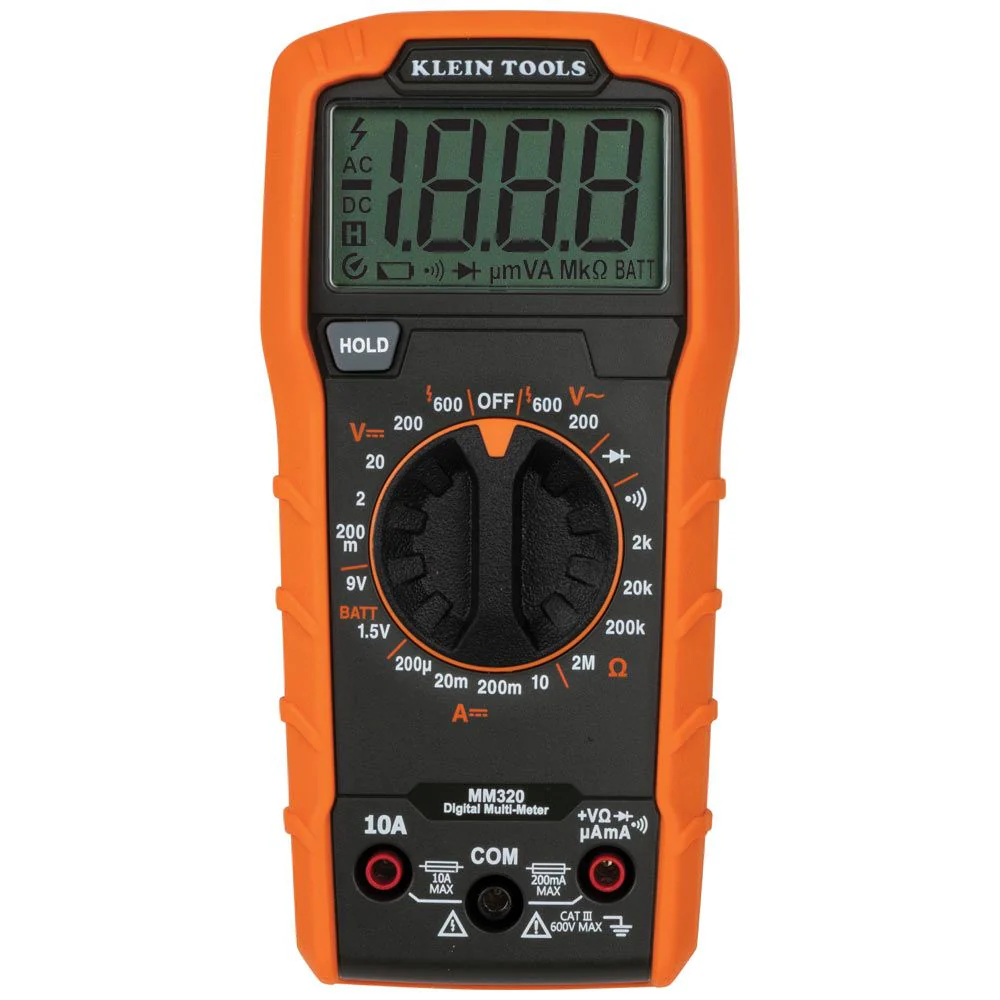

• Digital Multimeter MM320 measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance; also tests batteries, diodes, and continuity

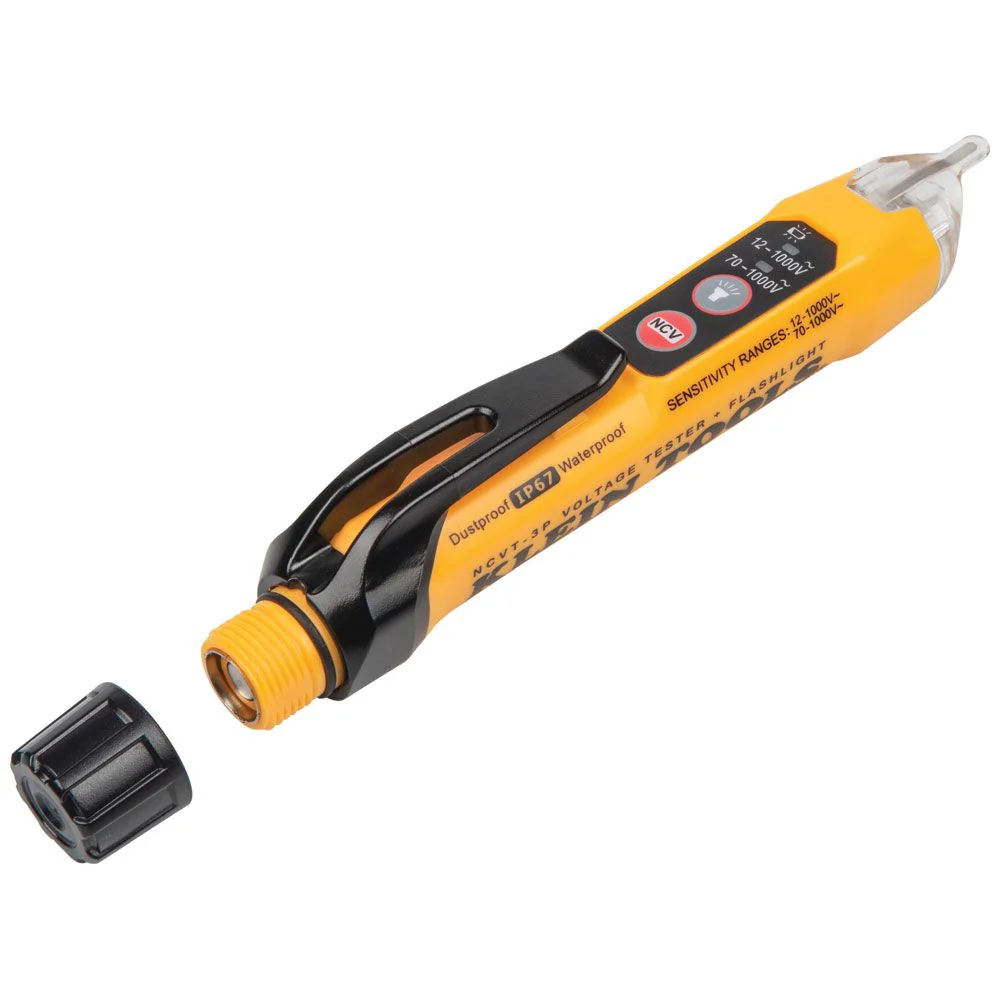

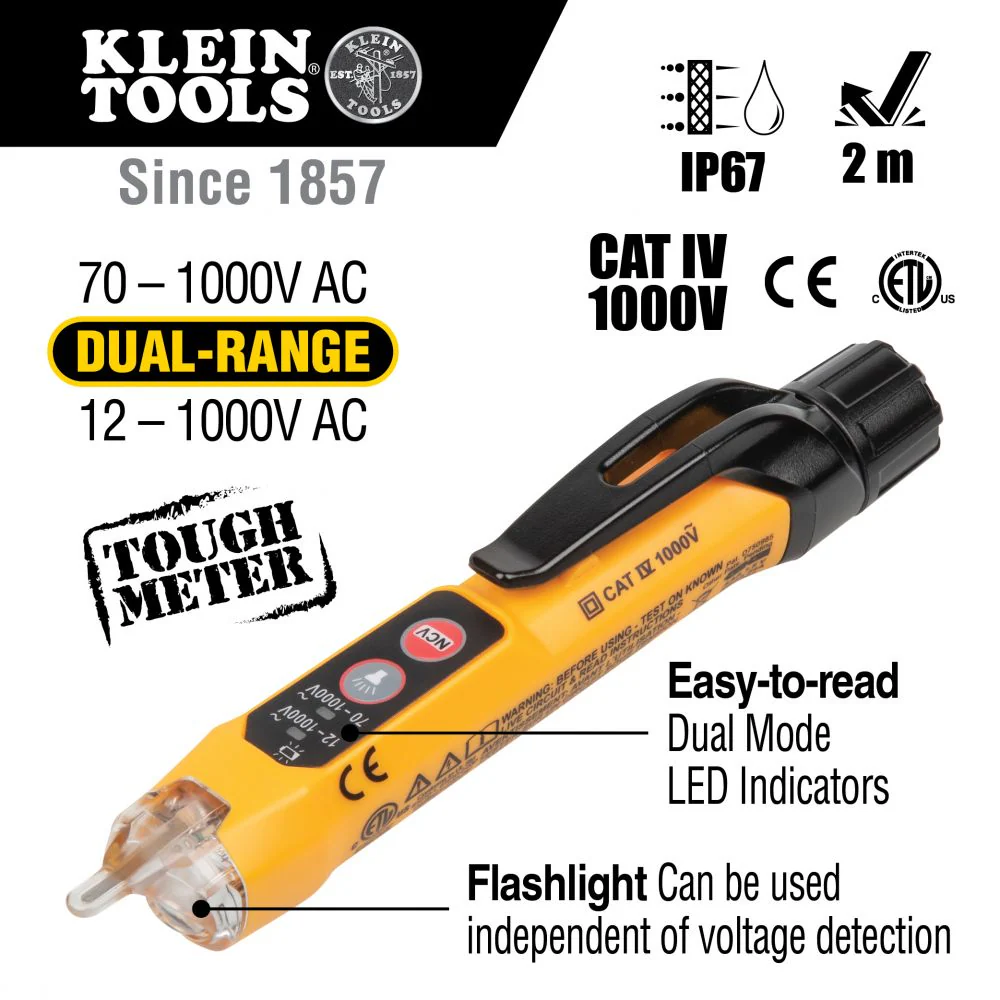

• Voltage Tester NCVT3P has dual-range capabilities to detect from 12 to 1000 VAC or 70 to 1000 VAC for a broad variety of low-voltage or standard voltage applications
• Bright flashlight illuminates work area and may be used independent of voltage detection function

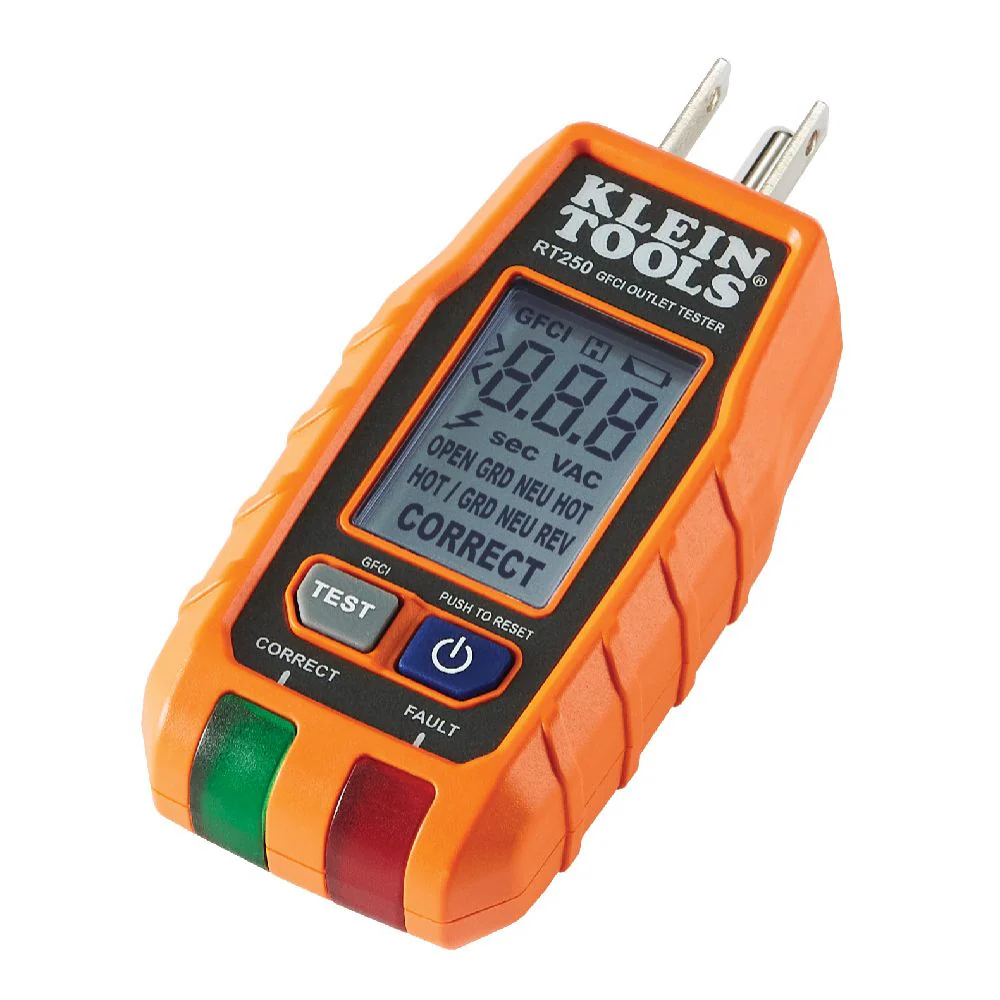

• GFCI Receptacle Tester RT250 features a large backlit LCD readout of voltage, and clear indication of wiring conditions, including patent pending detection of Open Neutral / Open Ground wiring faults
• LCD readout on receptacle tester shows the time required to trip a GFCI device; for use on 3-wire, North American 120V electrical outlets only

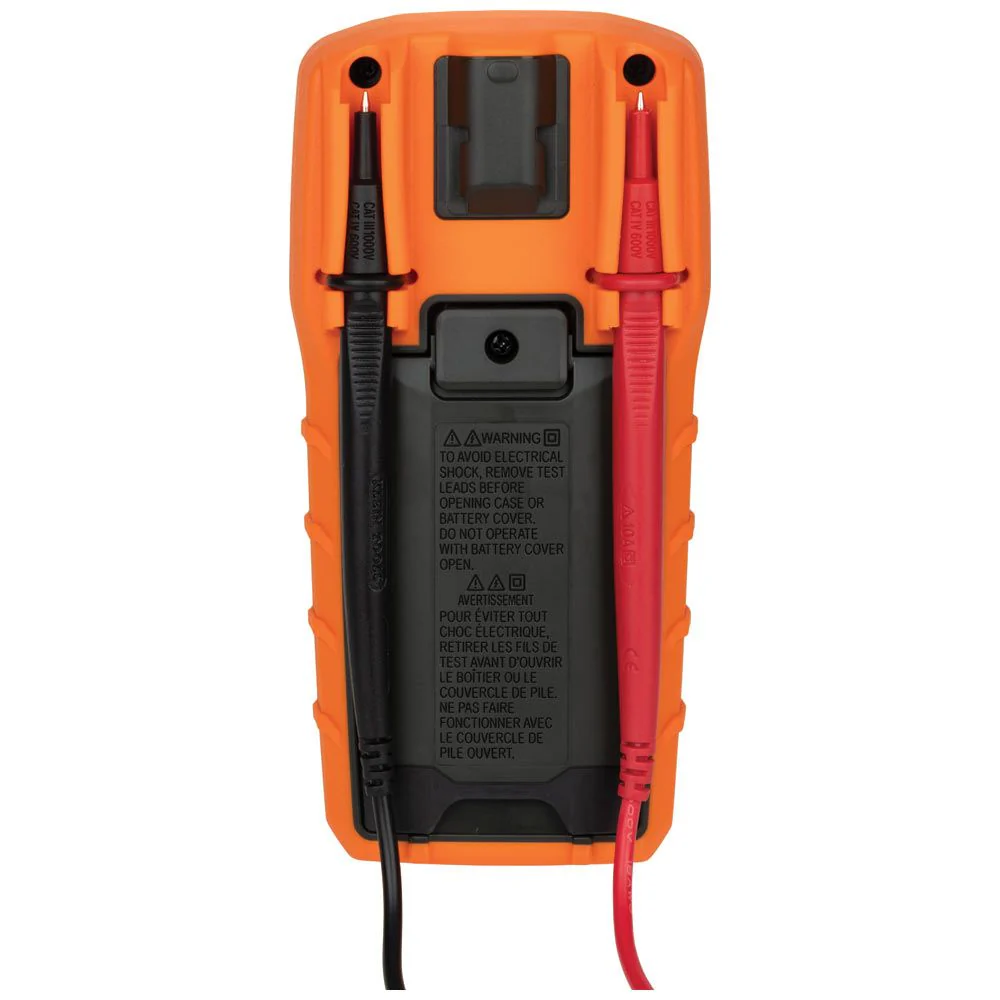

• Digital Multimeter MM320 includes right-angle test leads and all required batteries
• MM320 is CAT III safety rated for 600V

Technical Information

Type: Electrical Test Kit
Application: Multimeter Measures up to 600V AC/DC Voltage, 10A DC Current and 2MΩ Resistance. Tests Batteries, Diodes, and Continuity
Special Features: Auto Power-Off on MM320 Multimeter
Material: ABS/Electronics
Batteries: MM320: 2 x AAA
Drop Protection: MM320: 3.3' (1 m)
Display: MM320: 2000 Count LCD
Functions: Hold
Voltage: MM320: 600V AC/DC
Current: 10A
Ohms (Resistance): 2MΩ
Standard: MM320: CAT III 600V; CE; UKCA
Included: MM320 Manual-Ranging Digital Multimeter with Right-angle Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; RT250 GFCI Receptacle Tester with LCD; Instructions; and All Required Batteries
Overall Length: 6.39'' (162.4 cm)
Overall Height: 1.80'' (45.7 cm)
Overall Width: 3.12'' (79.4 cm)
Weight: 8.2 oz (231 g)

Document



RT250 Instructions

NCVT-3P Instructions

MM320 Instructions
