Klein Tools Test Kit with Multimeter, Non-Contact Volt Tester, Receptacle Tester, Model 69149P

Description

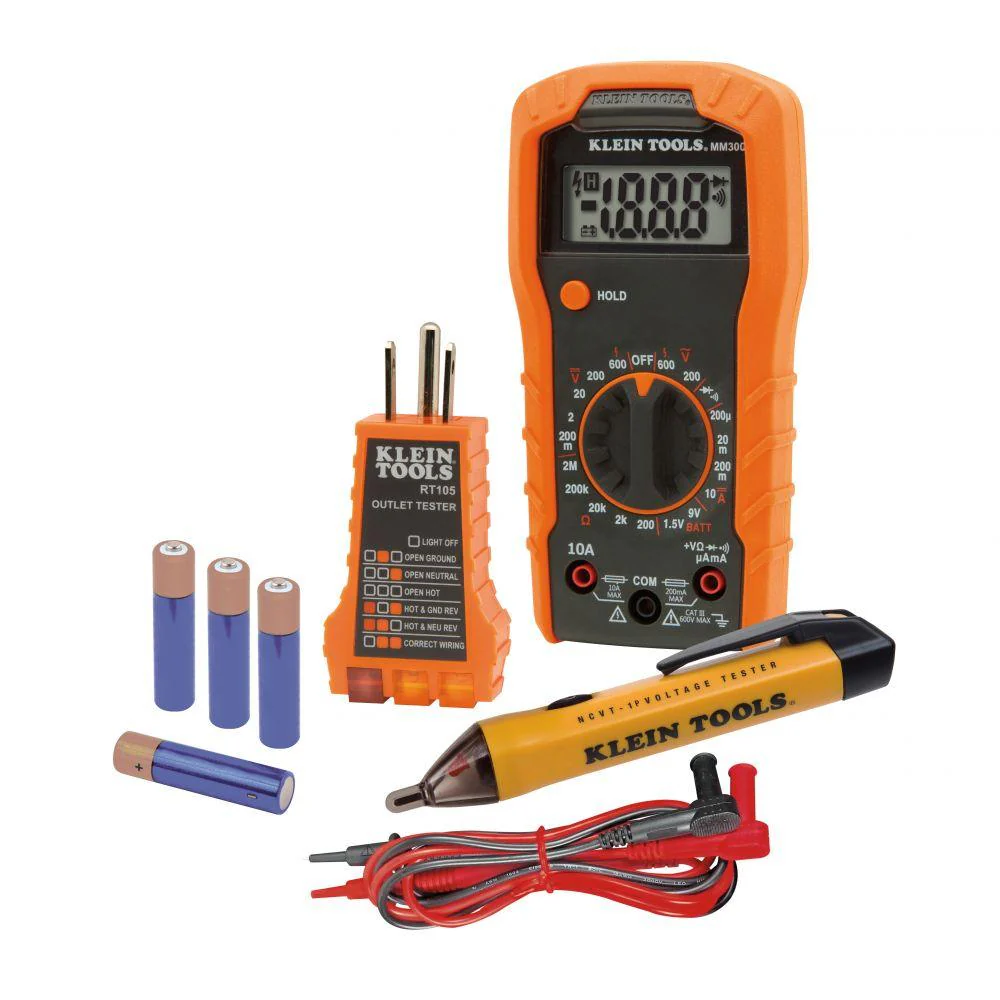

Klein Tools Multimeter Test Kit contains Cat. No. MM300 (Manual-Ranging Digital Multimeter), Cat. No. NCVT1P (Non-Contact Voltage Tester) and Cat. No. RT105 (Receptacle Tester). The MM300 measures DC current, AC/DC voltage and resistance. The NCVT-1P automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT105 detects the most common wiring problems in standard receptacles.

Features

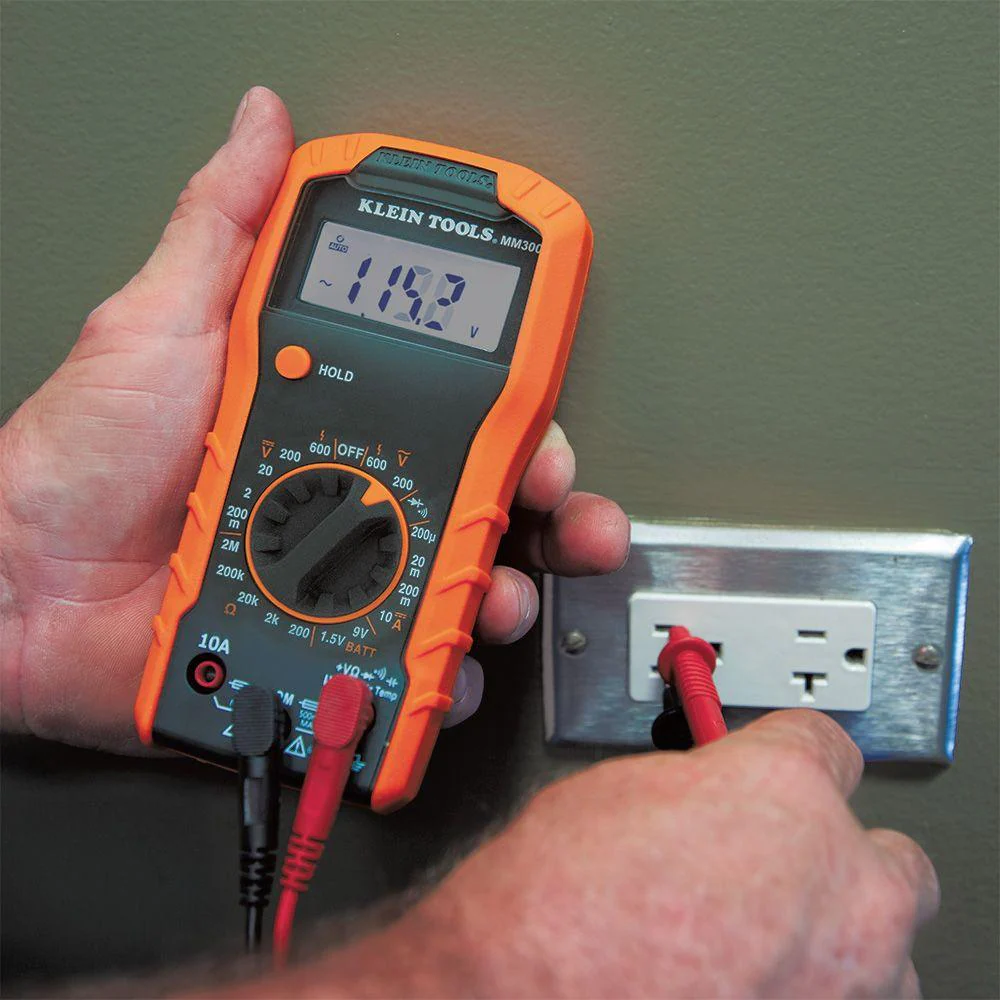

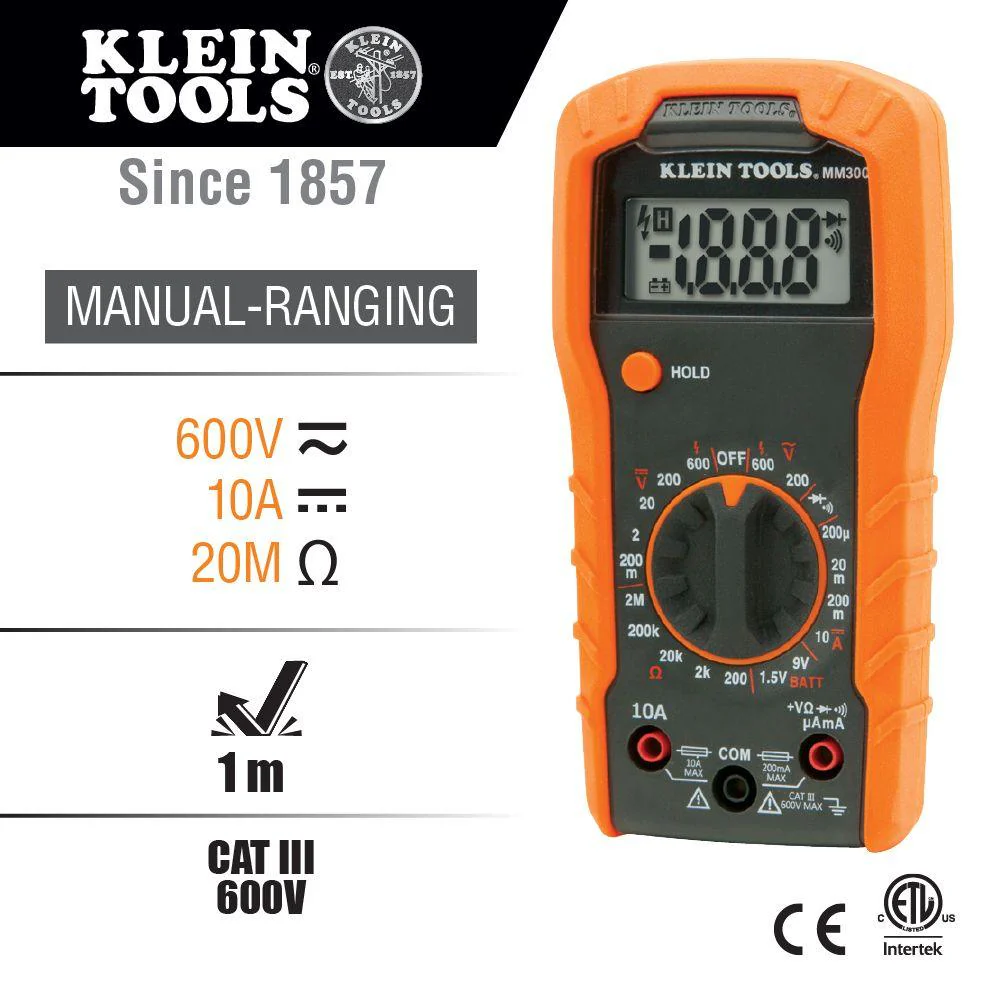

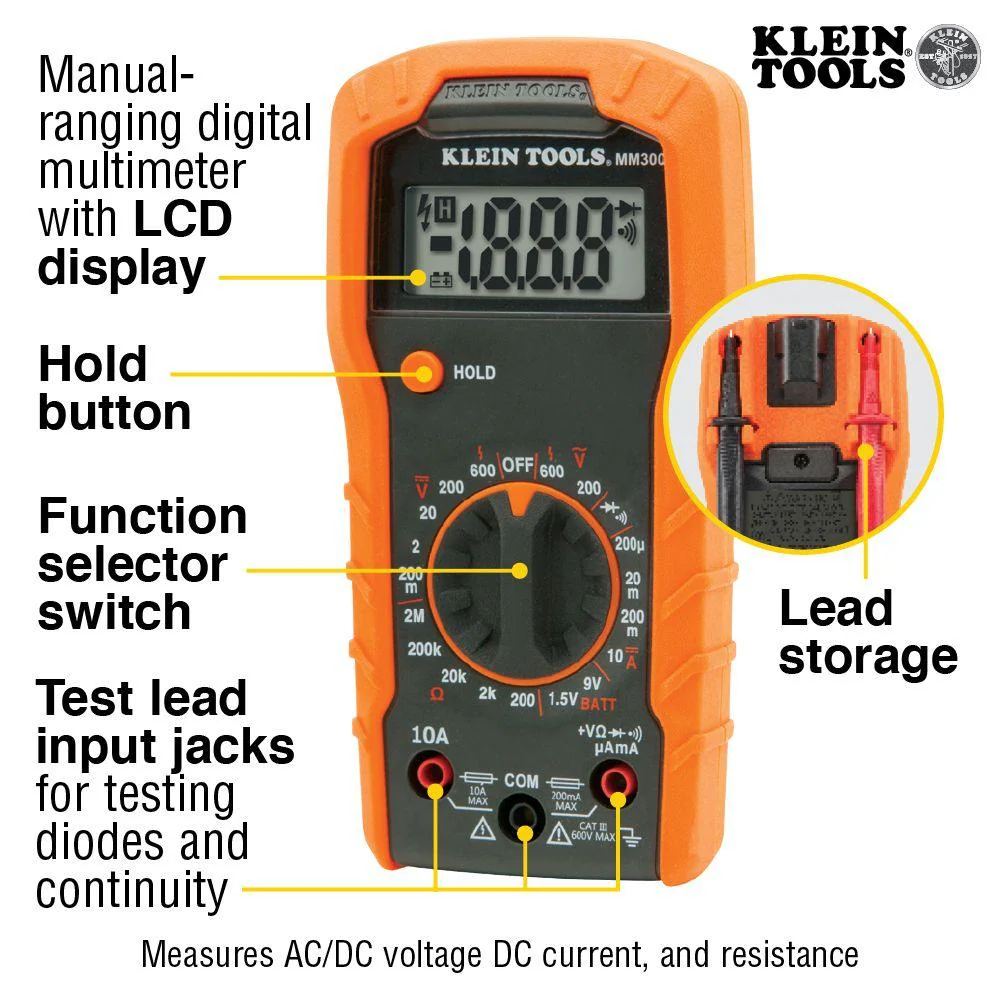

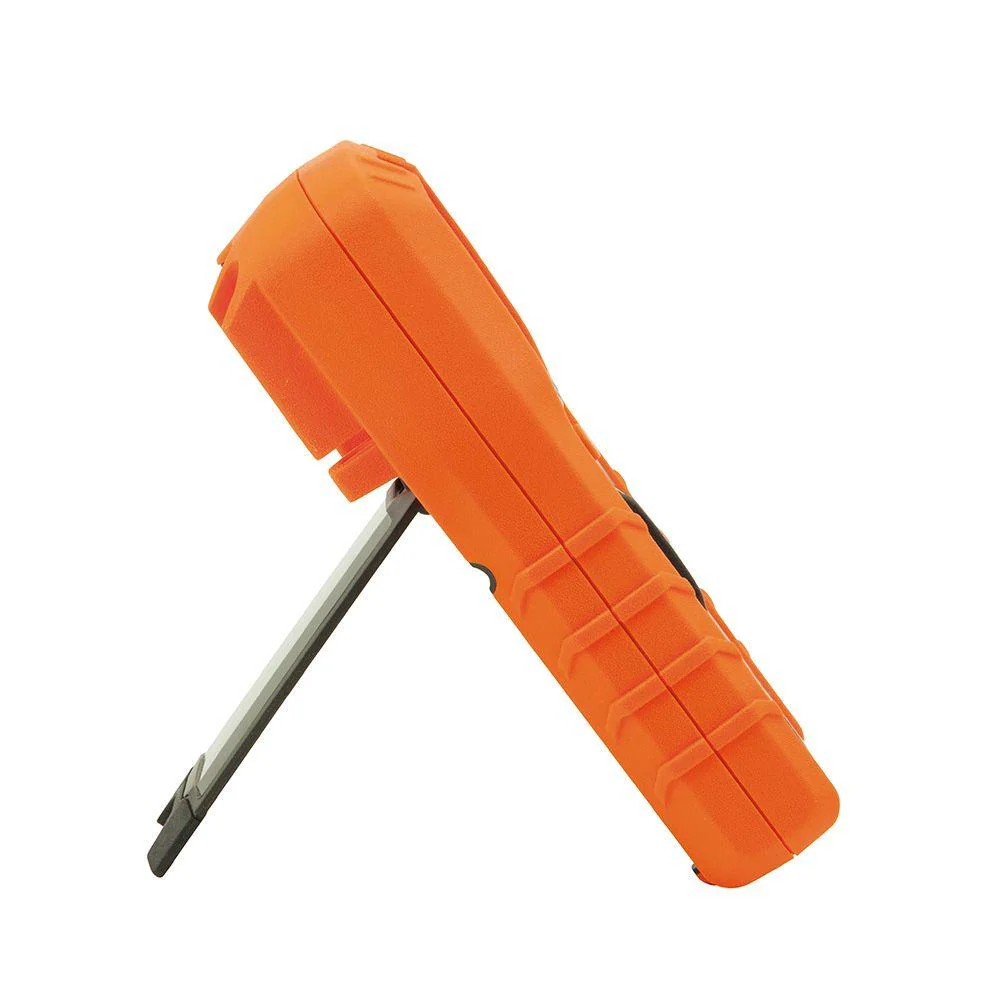

• The MM300 multimeter measures AC/DC voltage, DC current and resistance and has a safety rating of CAT III 600V, Class 2, Double insulation

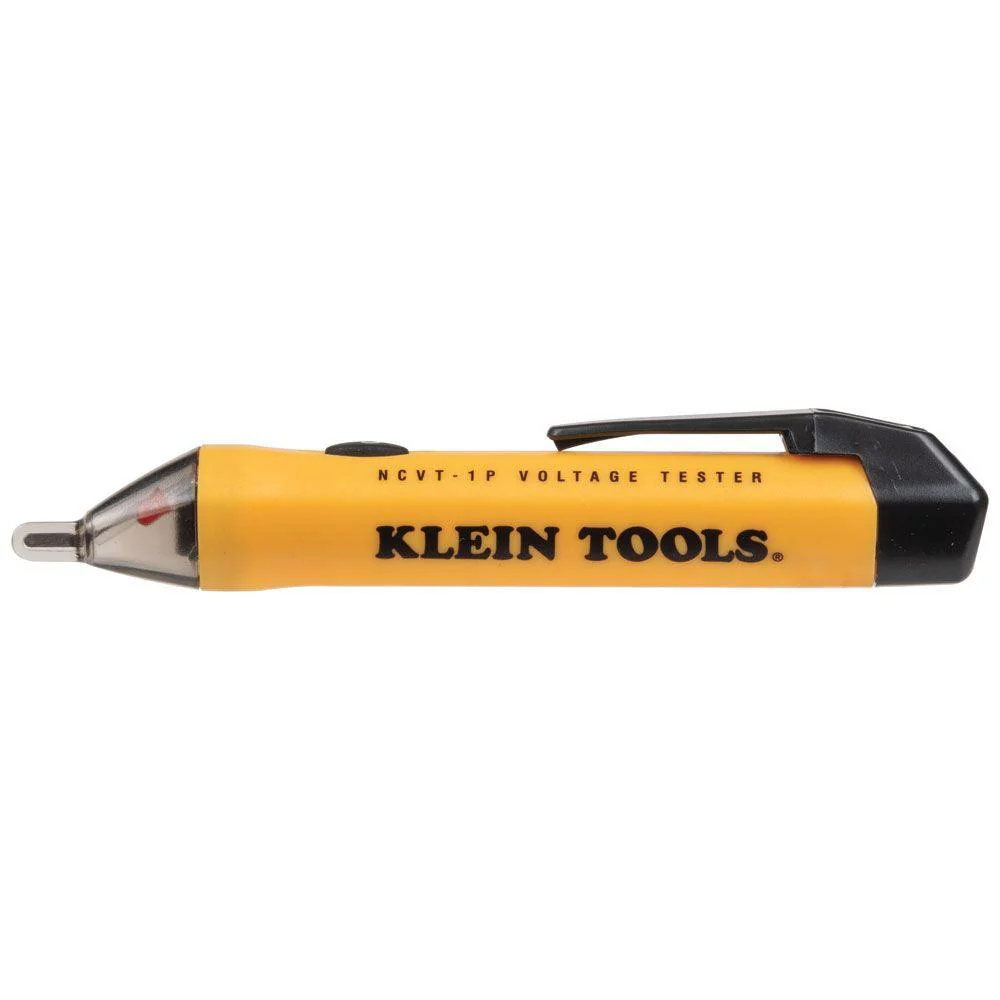

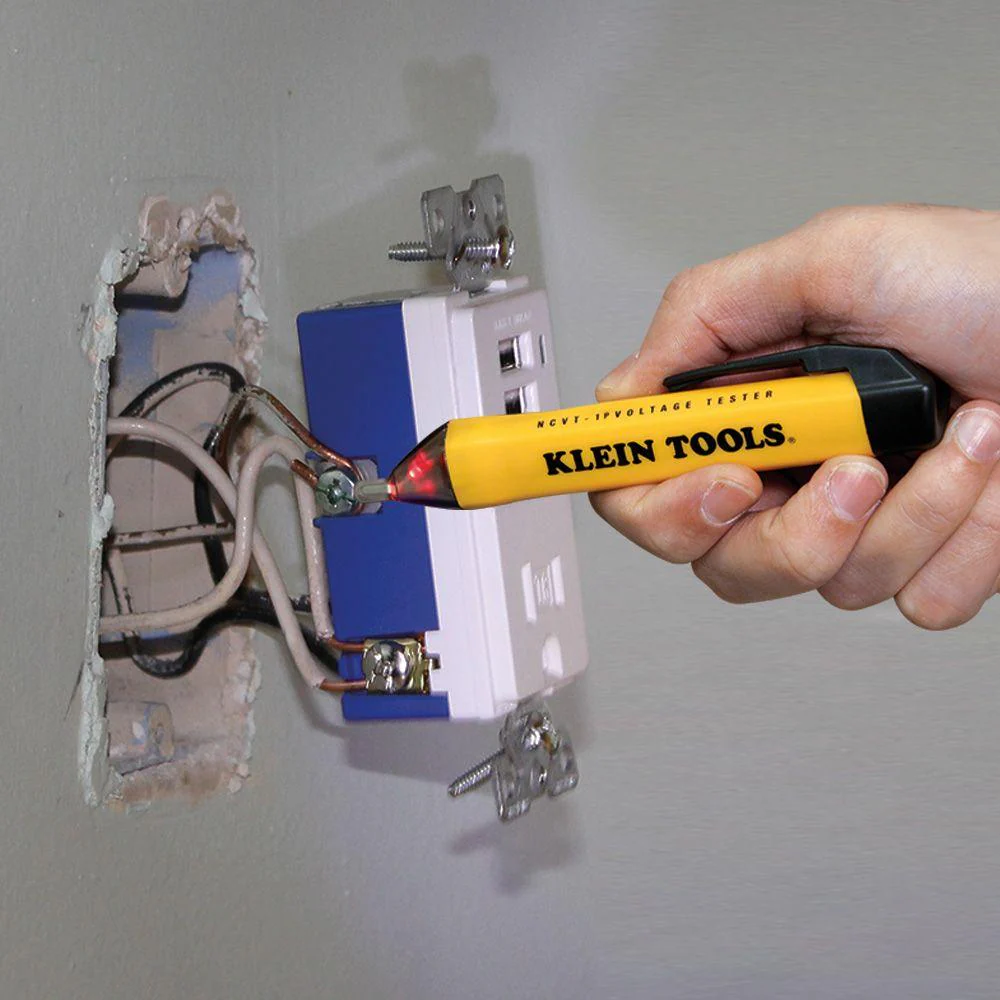

• Non-Contact Voltage Tester Cat. No. NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected

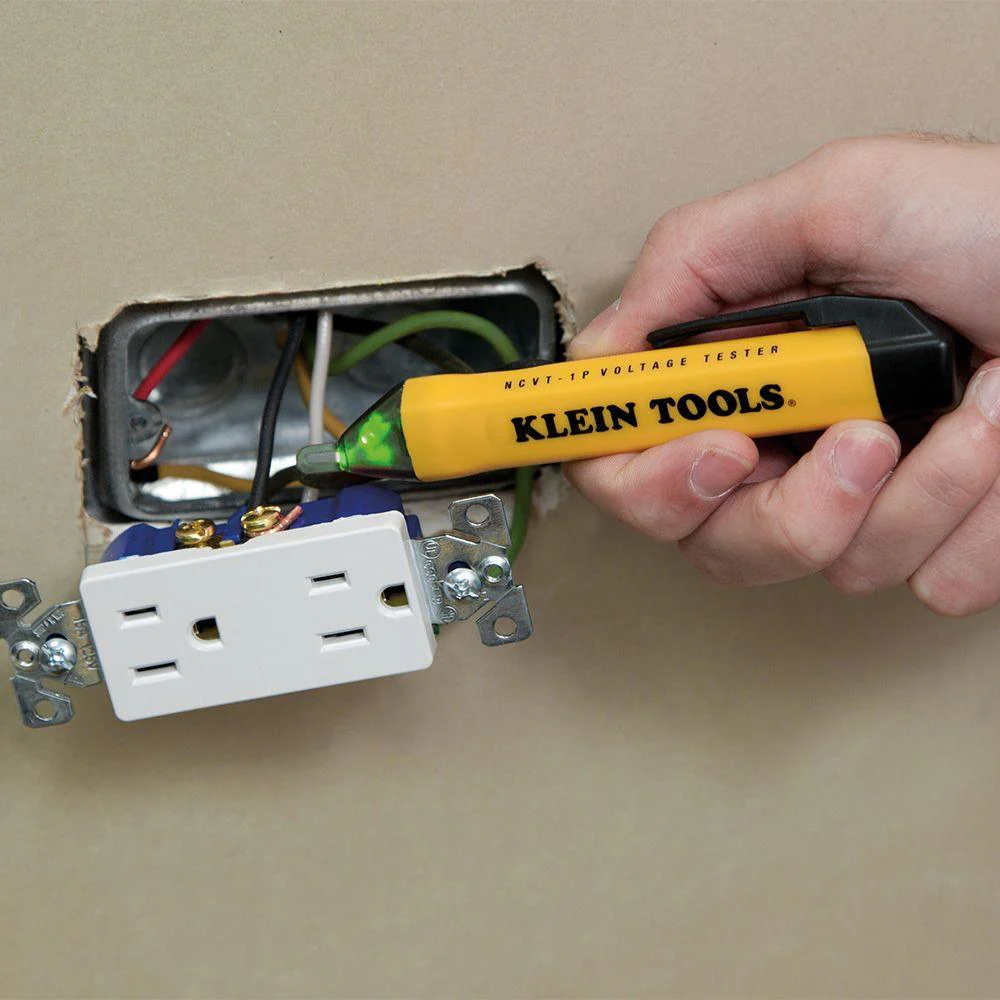

• NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000V AC power operating range

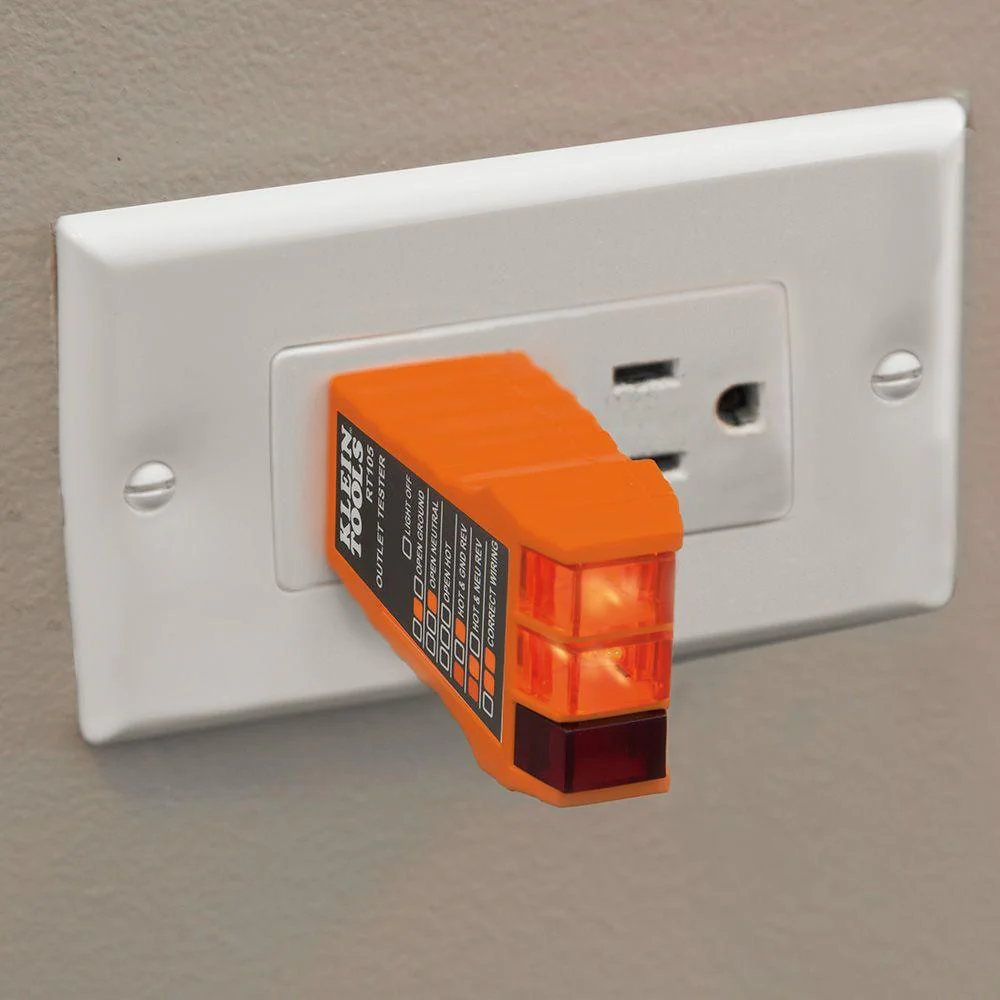

• Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
• Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
• MM300 multimeter tests continuity with visual and audible continuity indicators

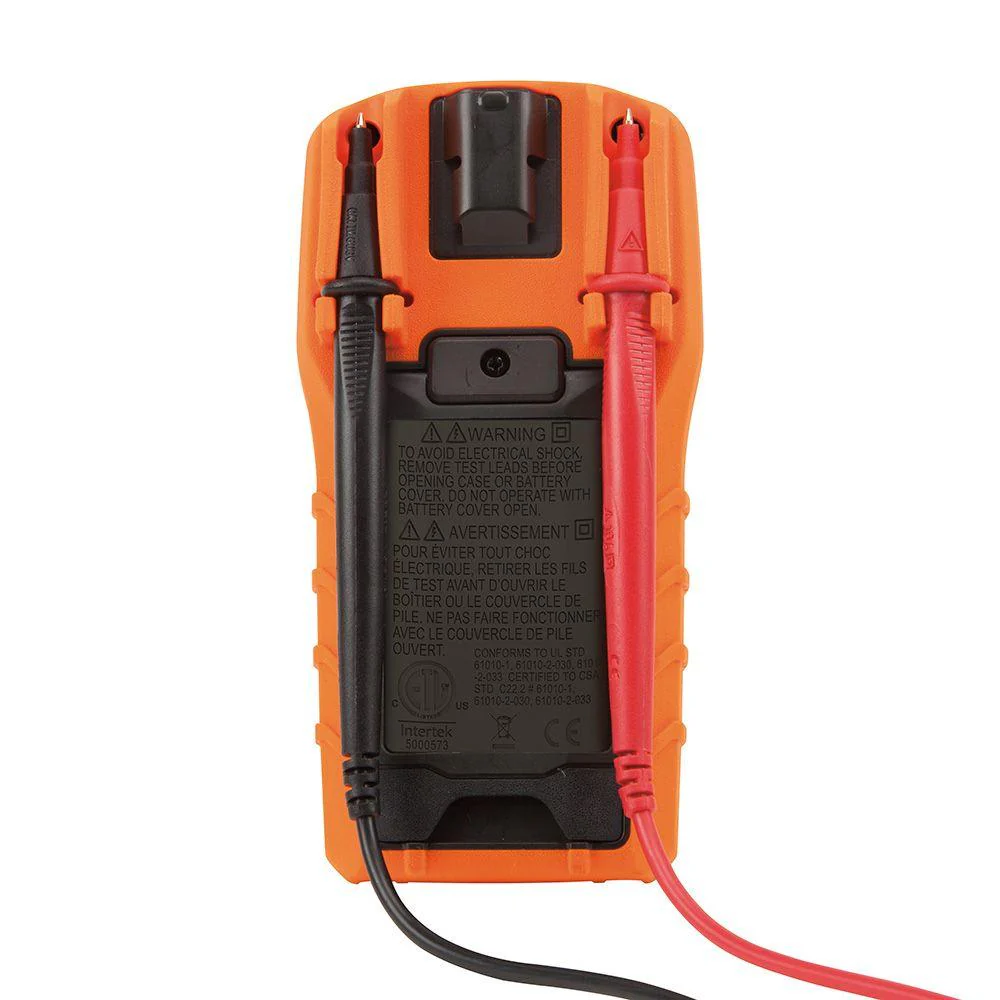

• Test leads included for Cat. No. MM300; batteries included for Cat. Nos. NCVT1P and MM300

Technical Information

Type: Electrical Test Kit
Application: Testing and Measuring Voltage
Special Features: MM300: Low Battery Indicator; NCVT-1P: Pocket Clip
Overall Length: 6'' (15.2 cm)
Overall Height: 1.78'' (4.5 cm)
Overall Width: 3.16'' (8 cm)
Material: Polymer Body and Electronic Components

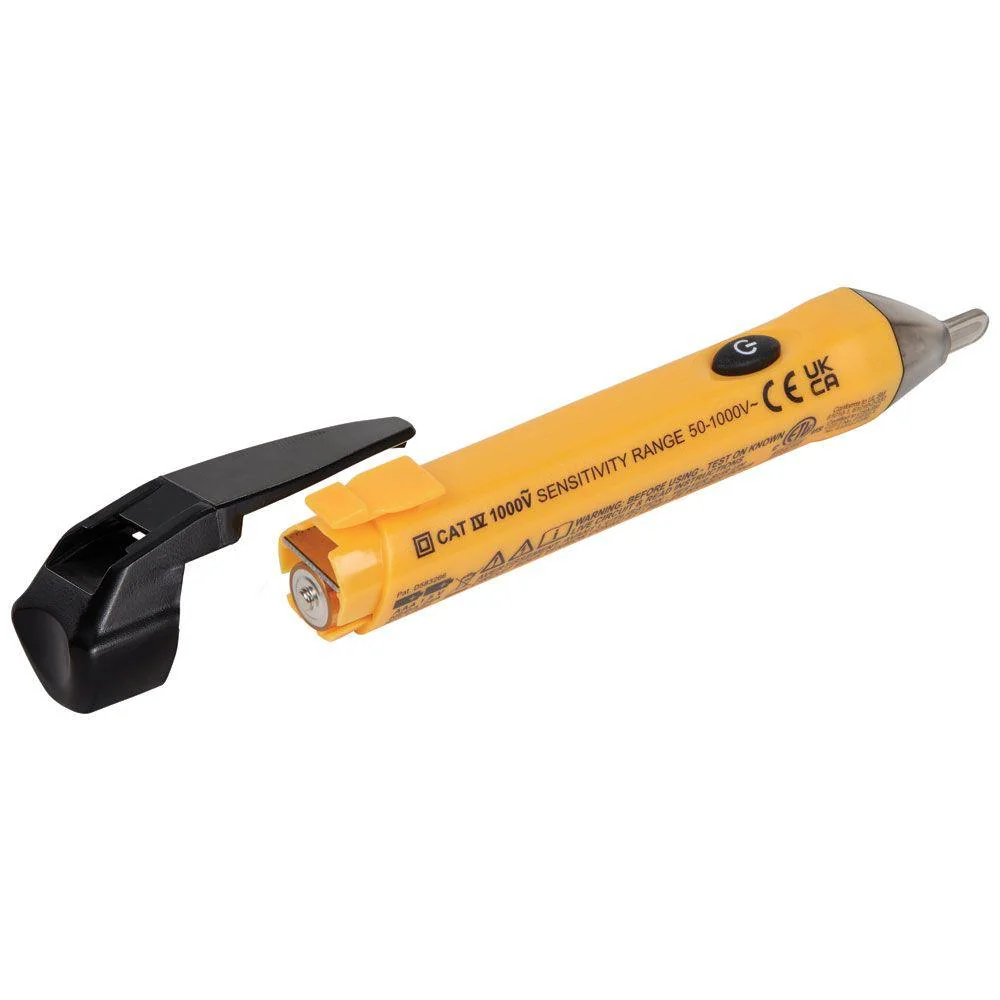

Batteries: MM300: 2 x AAA; NCVT-1P: 2 x AAA
Included: Manual-Ranging Multimeter, 600V (Cat.No. MM300), Non-Contact Voltage Tester Pen, 50 to 1000V AC (Cat. No. NCVT-1P), Receptacle Tester with Test Leads and Batteries (Cat. No. RT105)
Standard: MM300: CAT III 600V; NCVT-1P: CAT IV 1000V
Weight: 8.2 oz (231 g)

Document

RT105 Instruction

NCVT1P Instruction

MM300 Instruction

Multimeter Selection Chart
