Original: $344.50
-65%$344.50
$120.57The Story
Description

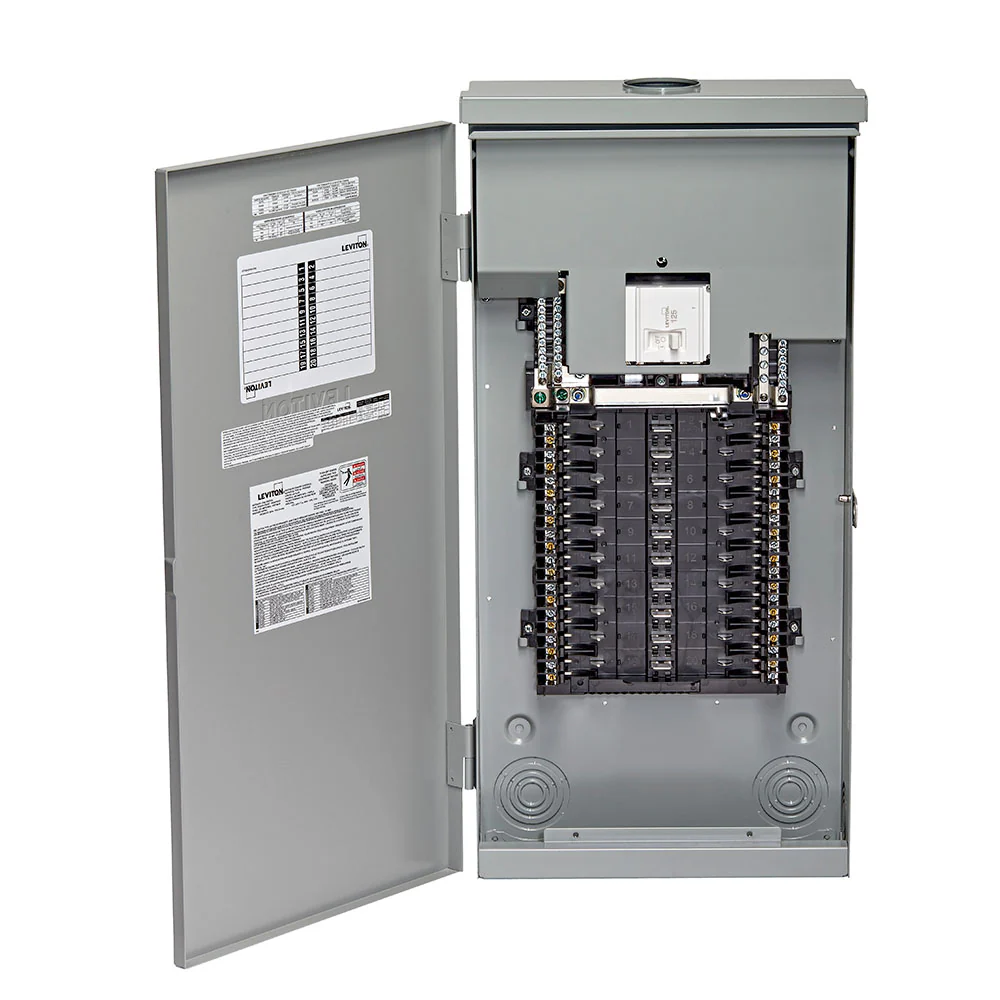

The Leviton Outdoor Load Center is easy to install and weather resistant. It features a gray enclosure and a solid cover housing white circuit breakers. Hydraulic-Magnetic Trip Technology allows circuit breakers to operate as intended over a wide range of temperature extremes, -40°C to 70°C, without re-rating. These Load centers are free of excess wires and pigtails, allowing easy access during installation and for inspectors to check torque. With many advantages these new modern, aesthetically pleasing units are the smarter solution for your homes electrical management hub.
****For security reasons, we cannot accept returns on load centers.
Benefits
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker*
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker No pigtails on circuit breakers
- Copper bus is standard
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
Technical Information
Type: Outdoor
Warranty: 10-Year Limited
Short Circuit Current Rating: 22 KA
Spaces / Circuits: 20 / 20
Type of Load Center: Main Breaker
Voltage: 120/240 VAC
Busbar Rating: 225A
Dimensions: 30" H x 15" W x 4.4" D
Ground Connection: 4 AWG - 2/0 AWG Cu/Al
Supply Connections: 3 AWG - 300 MCM Cu/Al
Weight: 42.75 lbs.
Operating Temperature: -40°C to 70°C
UL 50: Yes
UL 50E: Yes
UL 67: Yes
UL 869A: Yes
