The Story
Description
When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.
Features
- Every fixture includes a junction box with integrated dimmable driver
- Can be daisy chained
- Superior LED performance and lifespan
- Regressed light source
- Minimal heat emission
- Aluminum construction
- Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
- IC certification (suitable for direct contact with insulation)
- Air-tight certified as per ASTM E283-04
- 40° beam angle
- Suitable for wet locations
- JA8 certified
- Ideal operating temperature: -20° to 40° C
- FT6 rated cable
- 5-year warranty
Technical Information
Recommended Dimmers: See spec sheet in downloads tab for recommended dimmers
Dimming: 0-10V, ELV, TRIAC
Watts: 14W
Delivered Lumen: 1100lm
LED Lumens: 1200lm
CRI: 90+
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT
Voltage: 120 | 277 V, 120V
Cutout size: Ø4"

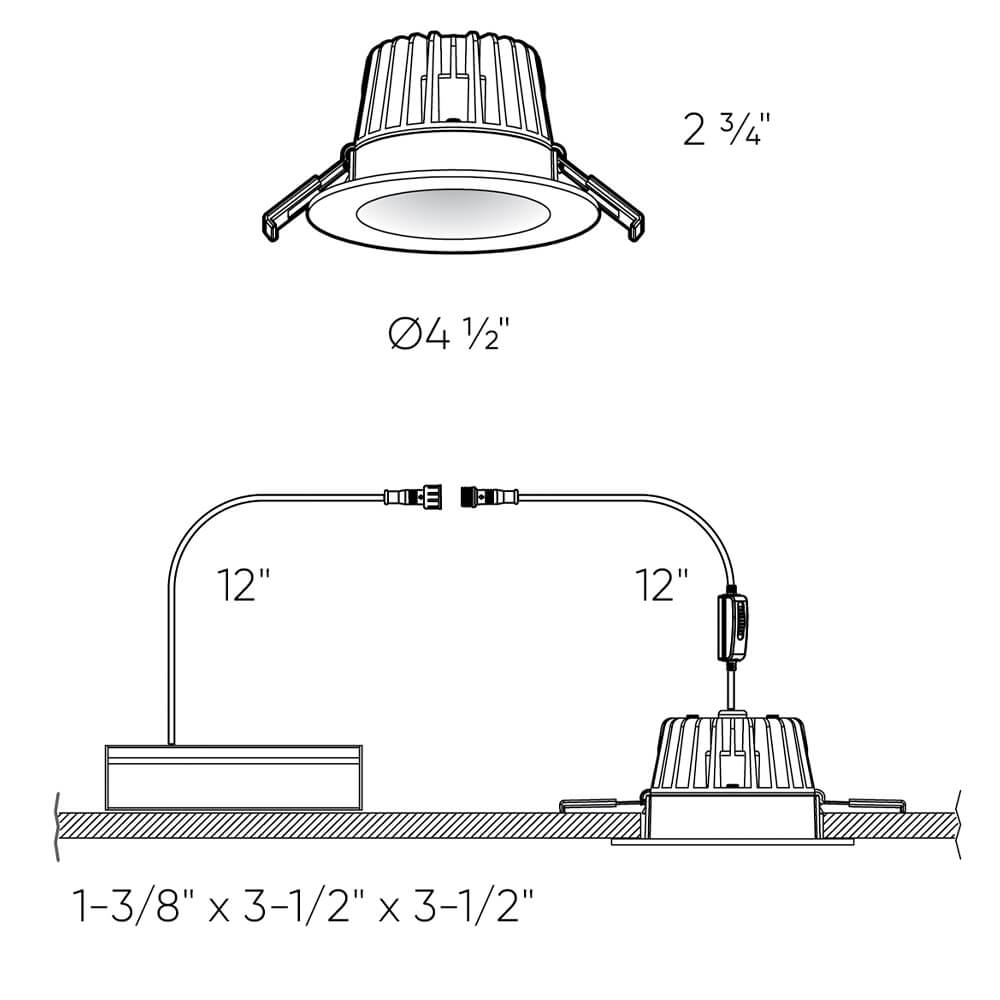

Dimensions: Ø4.5" x 2.75"
Lifetime: 50000H
